OATEY  |  SKU: 3266115

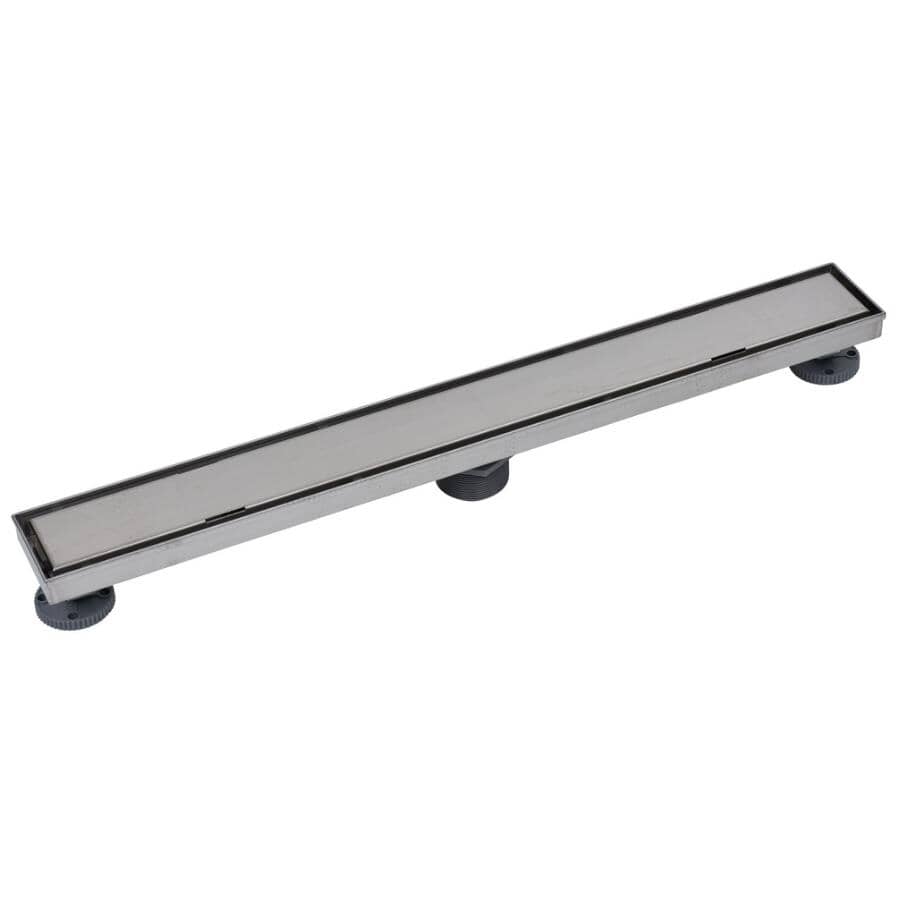

Designline 28" Stainless Steel Linear Shower Drain Tile-in Grate

$15999
Description

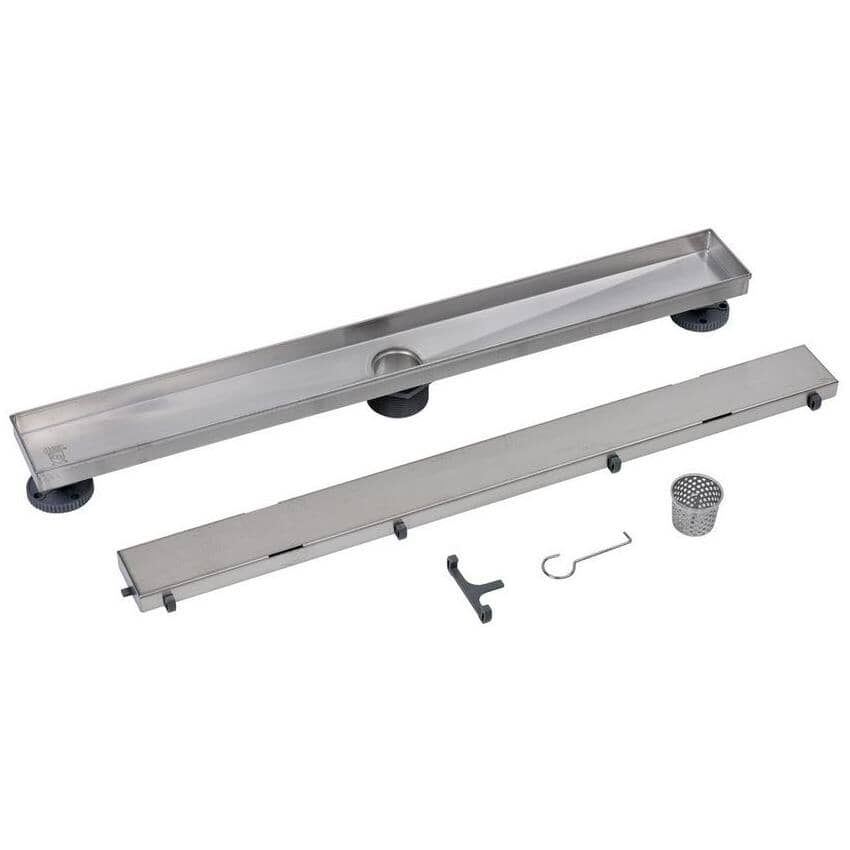

Add functional elegance to your shower with the Oatey® Designline™ Linear Shower Drain tile-in grate. The linear drain length and width is engineered to achieve the best fit, form and function in a tile shower. Simply change the drain height in your shower by adjusting the leveling feet. The 2-inch outlet adaptor with an O-ring attaches to standard drain outlets. The drain is compatible with both PVC and CPE waterproofing liners. With a sloped channel design, you can be sure that water consistently flows to the drain outlet. The included raising tool and removable basket allow you to easily lift the drain cover and remove debris. Waterproofing, bonding adhesive and drain base are sold separately.

  • Linear drain allows for a quick and easy shower drain assembly

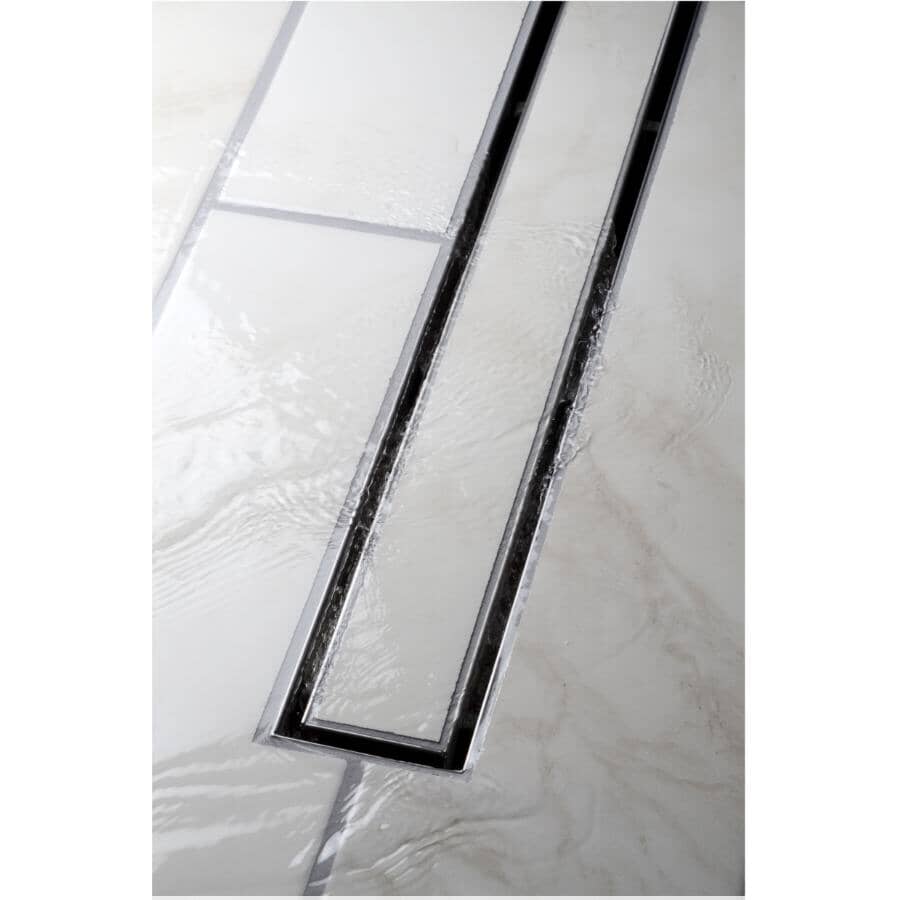

  • Install your shower tile into the tile-in grate
  • Slanted channel maintains a self-cleansing flow
  • Lifting key provided for ease of removal during cleaning and maintenance
  • Debris basket with silicone sound proof band eliminates any rattle or noise
  • Grade 304 stainless steel construction has a sloped channel to ensure proper drainage
  • Includes 2" threaded outlet adaptor with O-ring that seals to drain outlet
  • Adjustable leveling feet for quick and easy height adjustment during installation
    • Specifications
    Finish STAINLESS STEEL
    Model DLS1280R2
    Package height 28.9 in
    Package length 3.5 in
    Package width 4.0 in
    Product class MPA2
