SOUTHWIRE  |  SKU: 3686416

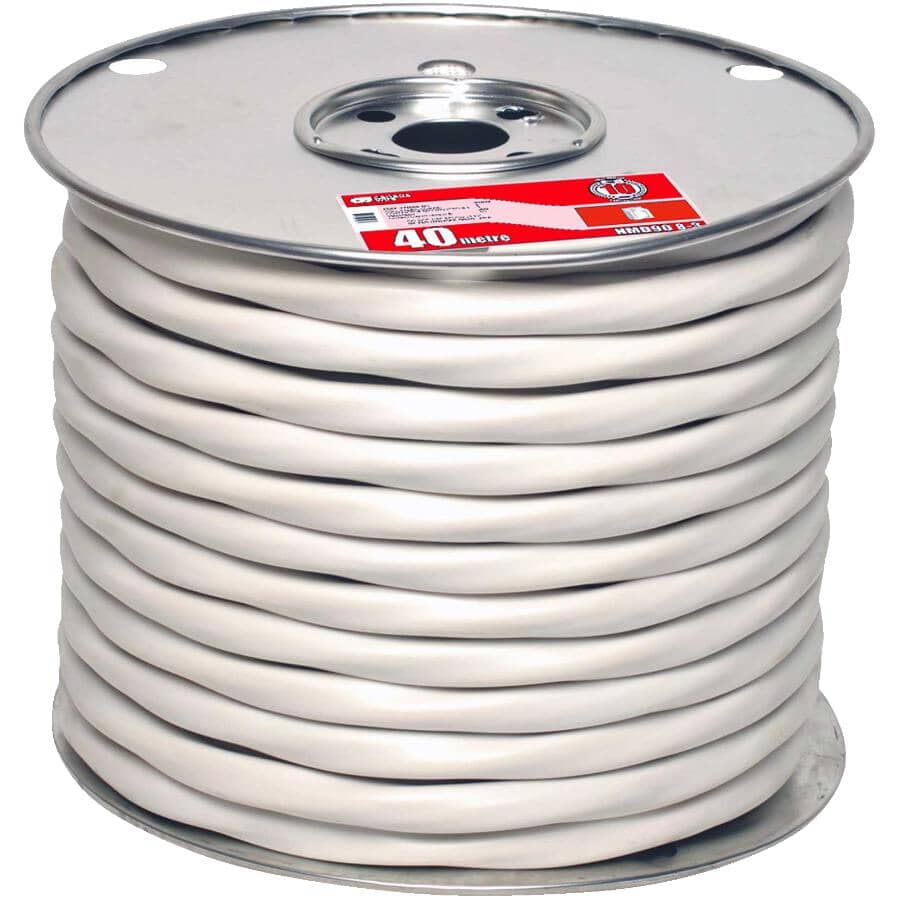

8/3 NMD-90 Copper Wire

$449
Description

Southwire's Romex® SIMpull® NMD90 cables are available as two or three conductor cables with a bare grounding conductor. It is manufactured using annealed (soft) copper conductors—compressed standing for stranded conductors; a heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction. It not only pulls 50% easier than conventional NMD but also saves a lot of time, with half the effort. Romex® SIMpull® NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.

  • Copper wire with white jacket
  • NMD90 Nylon
  • Ideal for use with stoves
  • Voltage rating: 300 volts
  • Maximum conductor temperature: 90 C
  • Cold temperature rating: -25C
  • Flame test rating: FT1
  • Conforms to: CAS Standard C22.2 no. 48
  • CSA Approval (file) number: LL7319C
  • Conductor: stranded copper
  • Insulation: heat resistant PVC
  • Protective sheath: nylon is extruded over the PVC insulation
  • Sold by the foot, 246 foot roll (75m)
    • Specifications
    Assembled product length 12"
    Model 47182175
    Package height 11.9 in
    Package length 15.6 in
    Package width 15.6 in
    Product class MERW
