SOUTHWIRE  |  SKU: 3686121

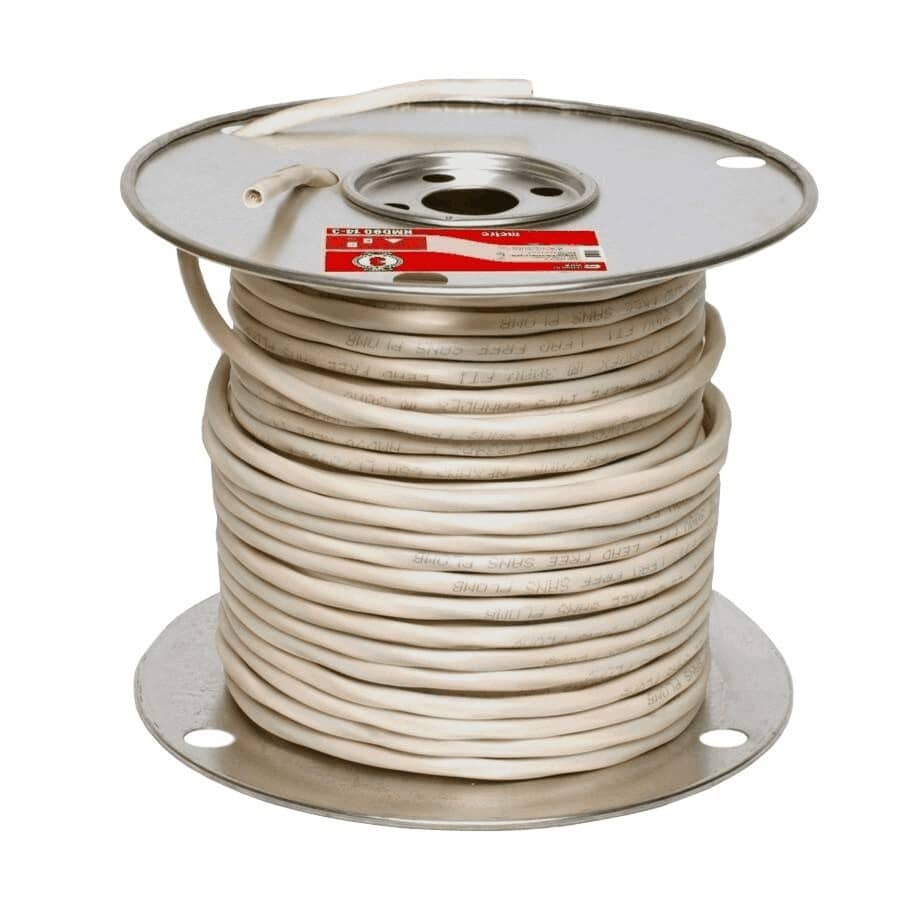

75M White 14/3 NMD-90 Copper Wire

$17999
Description

Superior electrical cable with copper electrical wire for residential electrical wiring projects. 14 AWG Romex® SIMpull® NMD90 with Freeze Flex includes 3 copper conductors and one ground wire. Use it for three-way electrical wiring of wall switches, light switches and dimmer switches, and ceiling fan/light combinations. Romex® SIMpull® features Southwires NoLube SIM technology which has revolutionized the way wire is pulled into conduit without any pulling lubricant, saving contractors both time and money. Romex® SIMpull® NMD90 electrical cable pulls 50% easier, is tear resistant, reduces burn-thru and strips easier. Freeze Flex gives you more pliability, easier stripping and added crack-resistance in cold weather.

  • NMD90 Nylon
  • Voltage rating: 300 volts
  • Maximum conductor temperature: 90 C
  • Cold temperature rating: -25C
  • Flame test rating: FT1
  • Conforms to: CAS Standard C22.2 no. 48
  • CSA Approval (file) number: LL7319C
  • Conductor: stranded copper
  • Insulation: heat resistant PVC
  • Protective sheath: nylon is extruded over the PVC insulation
  • Picture not exact
    • Specifications
    Assembled product length 2952.76"
    Colour family WHITE
    Model 47179776
    Package height 8.2 in
    Package length 10.5 in
    Package width 10.5 in
    Product class MERW
