SOUTHWIRE  |  SKU: 3686176

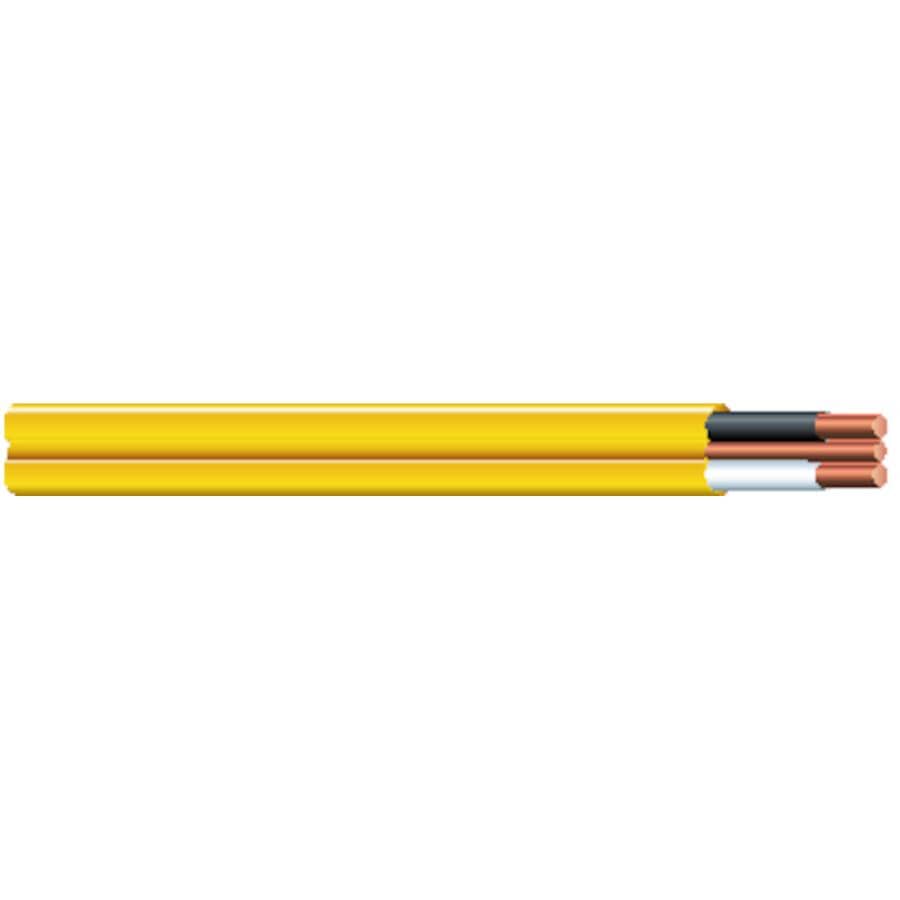

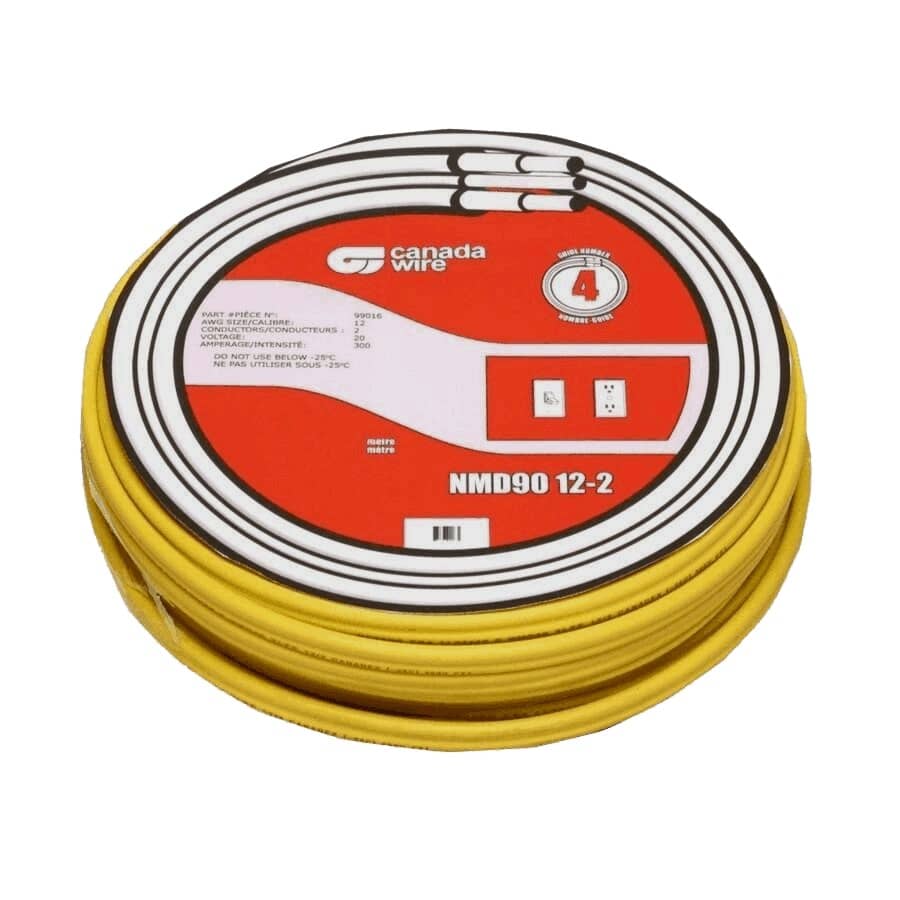

20M Yellow 12/2 NMD-90 Solid Copper Wire

$13499
Description

This cable is used for electrical household wiring. It is manufactured using annealed (soft) copper conductors—compressed standing for stranded conductors; a heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction. It not only pulls 50% easier than conventional NMD but also saves a lot of time, with half the effort. Freeze Flex gives you more pliability, easier stripping and added crack-resistance in cold weather.

  • NMD90 Nylon
  • Voltage rating: 300 volts
  • Maximum conductor temperature: 90 C
  • Cold temperature rating: -25C
  • Flame test rating: FT1
  • Conforms to: CAS Standard C22.2 no. 48
  • CSA Approval (file) number: LL7319C
  • Conductor: stranded copper
  • Insulation: heat resistant PVC
  • Protective sheath: nylon is extruded over the PVC insulation
  • Picture not exact
    • Specifications
    Assembled product length 787.4"
    Colour family YELLOW
    Model 47175520
    Package height 9.1 in
    Package length 1.9 in
    Package width 9.1 in
    Product class MERW
