SOUTHWIRE  |  SKU: 3686704

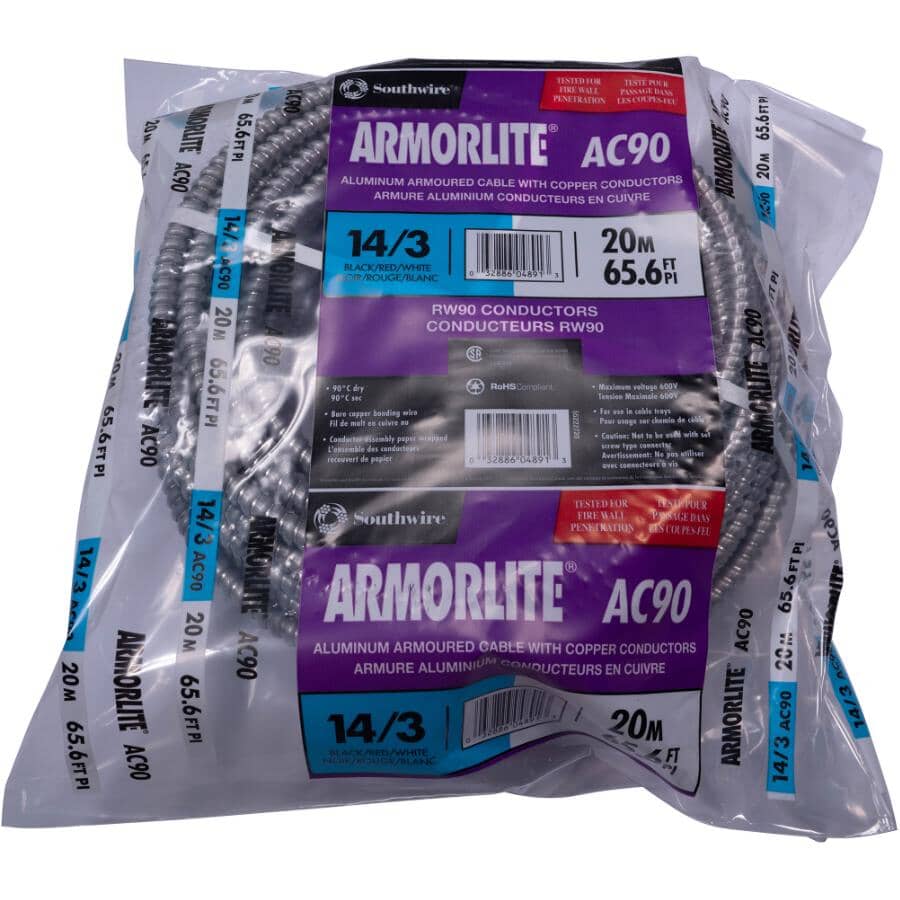

20M 14/3 AC-90 Armored Electrical Cable

$12999
Description

Southwire AC90 armoured electrical cable is manufactured using copper conductors with PVC/nylon insulation and a bare copper ground wire wrapped with bare interlocked aluminum armour. Used in dry locations only, for open and concealed electrical wiring as well as cable troughs and ventilated flexible cableways.

  • 14 AWG AC90 includes 3 copper wires and one ground wire
  • Minimum recommended installation temperature is minus 10°C. CSA cold temperature rating is minus 25°C
  • Maximum allowable conductor temperature is 90°C
  • Maximum voltage rating for all intended applications is 600V
    • Specifications
    Assembled product height 3"
    Assembled product length 12.5"
    Assembled product width 12.5"
    Model 55222720
    Package height 4.5 in
    Package length 12.9 in
    Package width 13.0 in
    Product class MERW
