EATON  |  SKU: 3690225

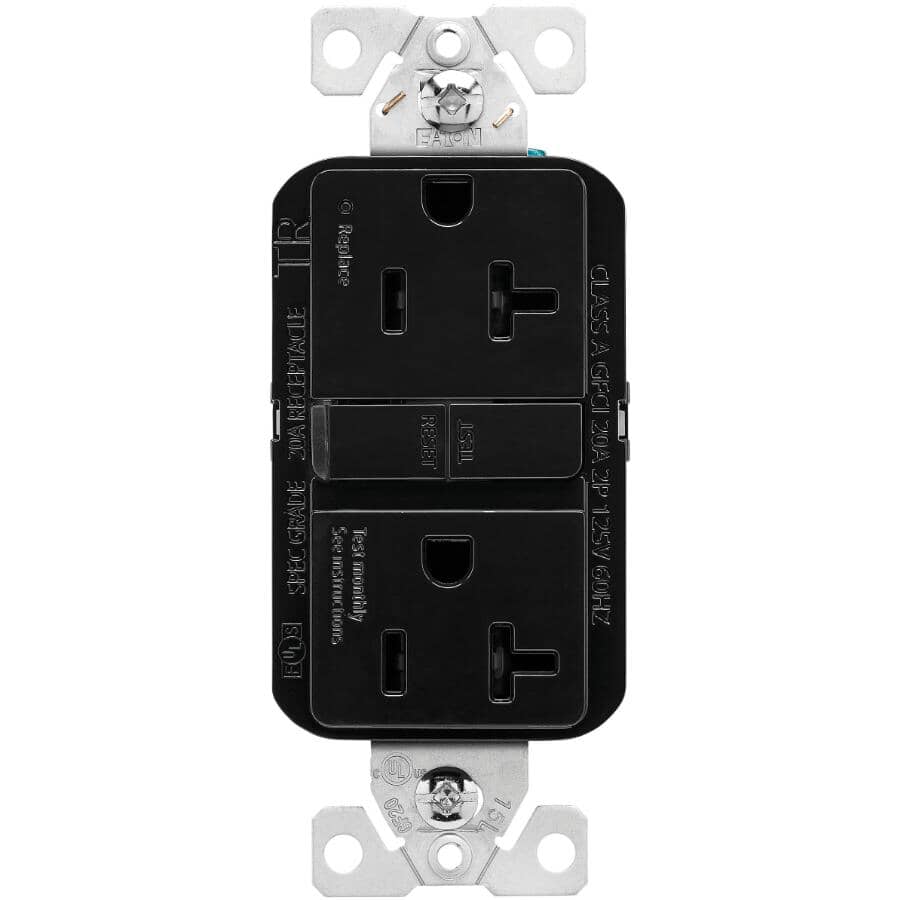

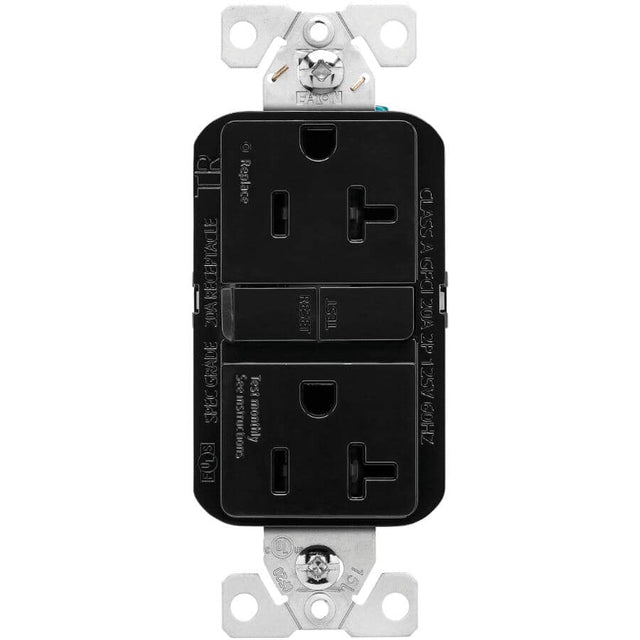

20 Amp Black Self Test Tamper Resistant GFI Receptacle

$3199
Description

Eaton Wiring offers this modern slimmer designed GFCI receptacle for easy installation, leaving more room for wires in the box. GFCI protection is required wherever receptacles are near wet or damp locations, such as bathrooms, garages, and food service areas, and all other areas mandated by the NEC design.

  • Slimmer 1.03" depth design for easy installation
  • Automatically self-tests periodically to ensure GFCI protection
  • Child-safety black tamper resistant shutters help prevent improper insertion of foreign objects
  • GFCIs incorporate lock-out functionality to protect against mis-wired line-load connections and GFCI circuitry damage
  • Wider button wells for easy TEST and RESET
  • Intuitive LED status indicators for trip and end of life states
  • Clean, modern design with reduced top housing markings and neutral text direction on buttons
  • Meets and exceeds 10 kA short circuit testing and Underwriters Laboratories (UL) UL943 safety standards
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • External backwire clamps provide visual confirmation of secure termination
  • Line side terminals are backed out and staked for fast installation
  • 20Amp / 125 Volt
  • Black
    • Specifications
    Assembled product height 4.2"
    Assembled product length 1.5"
    Assembled product width 1.37"
    Colour family BLACK
    Model TRGF20BK-BX-L
    Package height 4.4 in
    Package length 2.1 in
    Package width 2.4 in
    Product class MERR
    Voltage 125
