FEDERAL PIONEER  |  SKU: 3678611

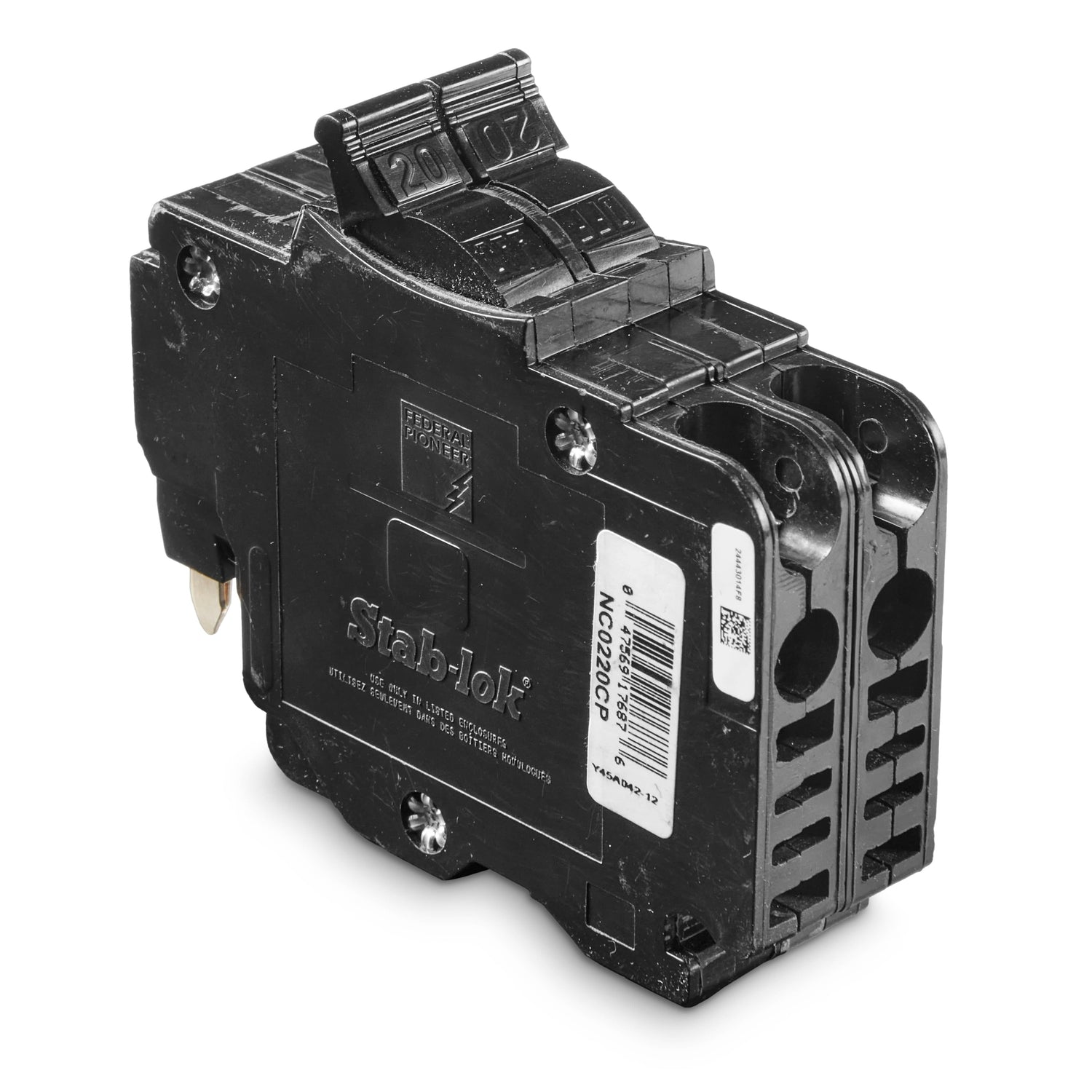

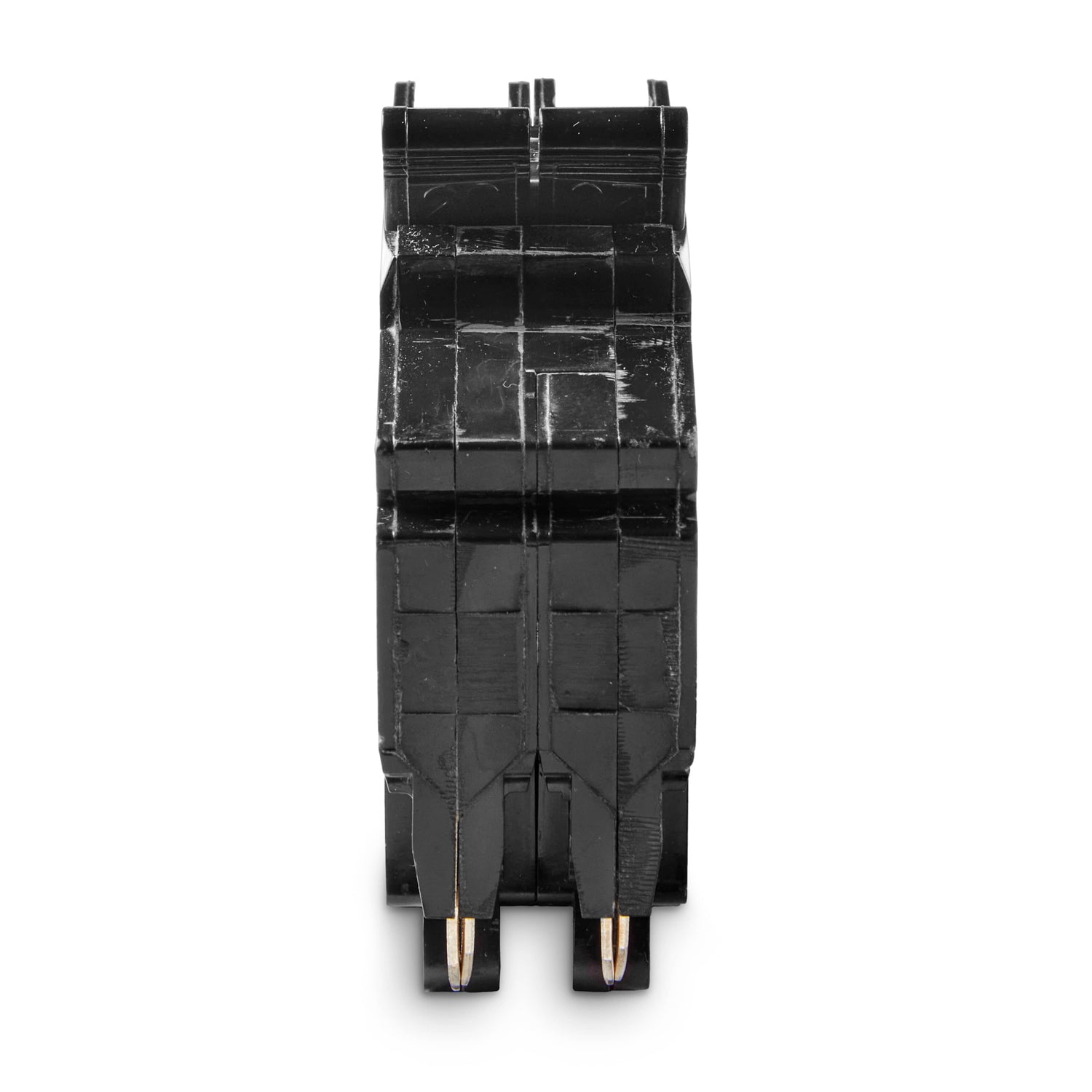

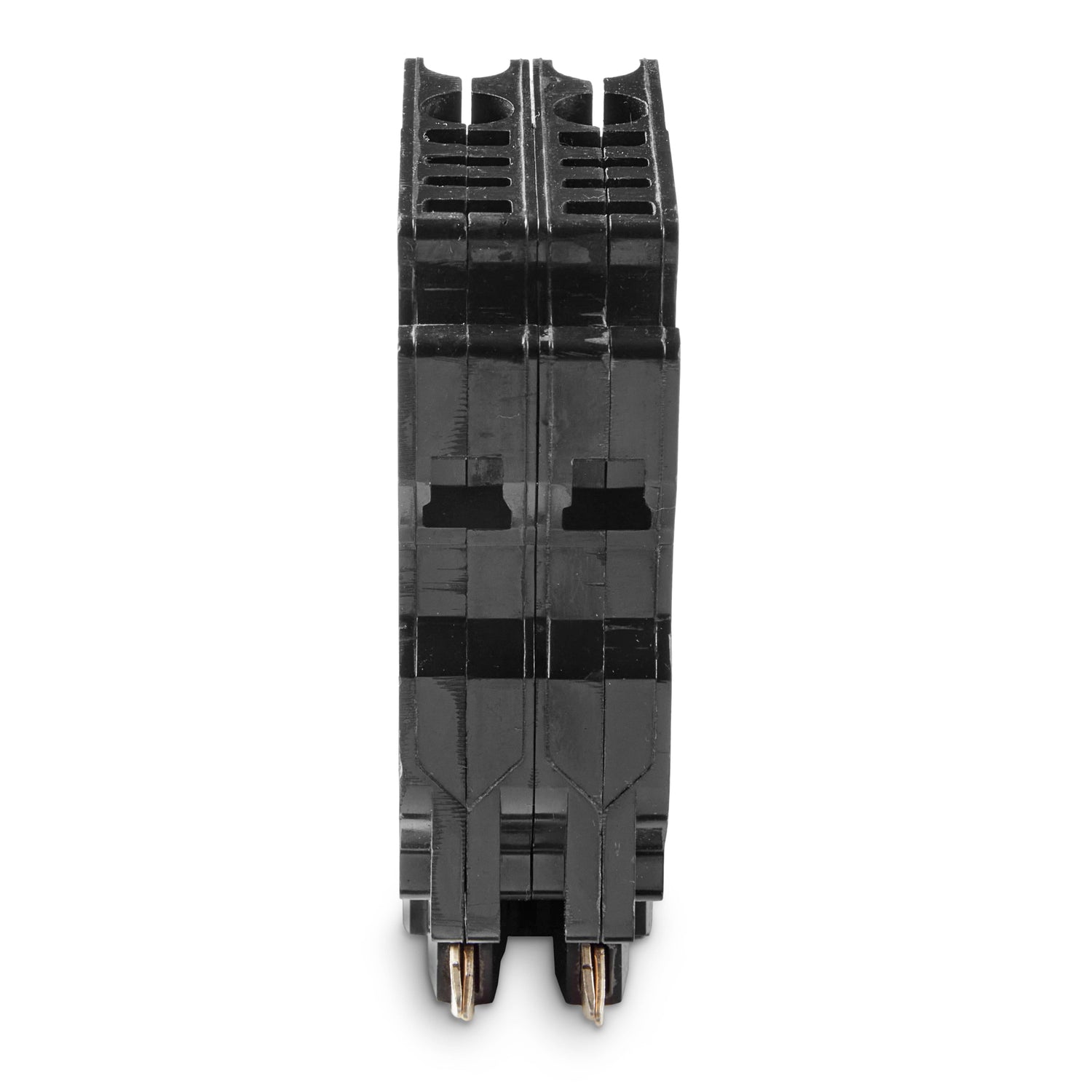

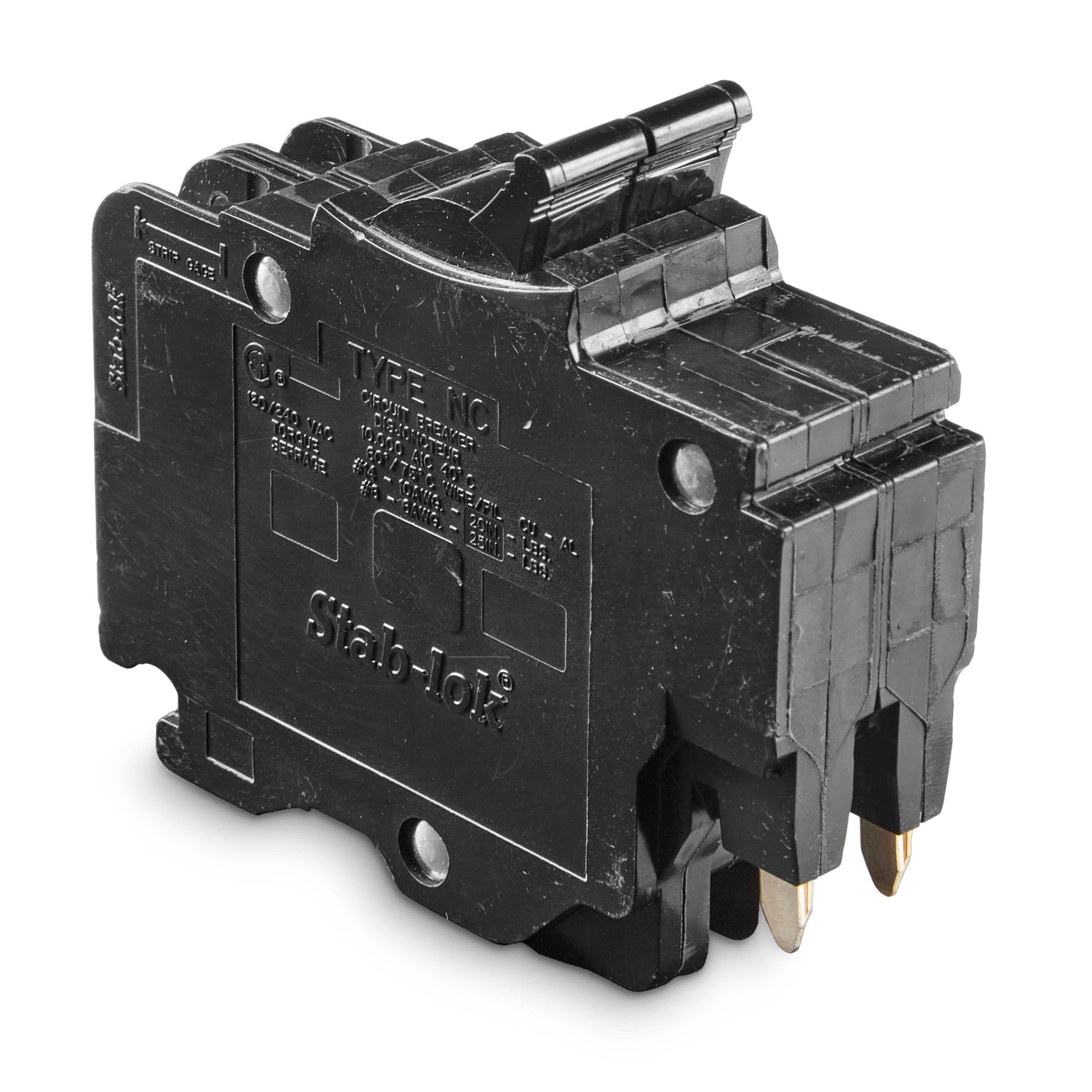

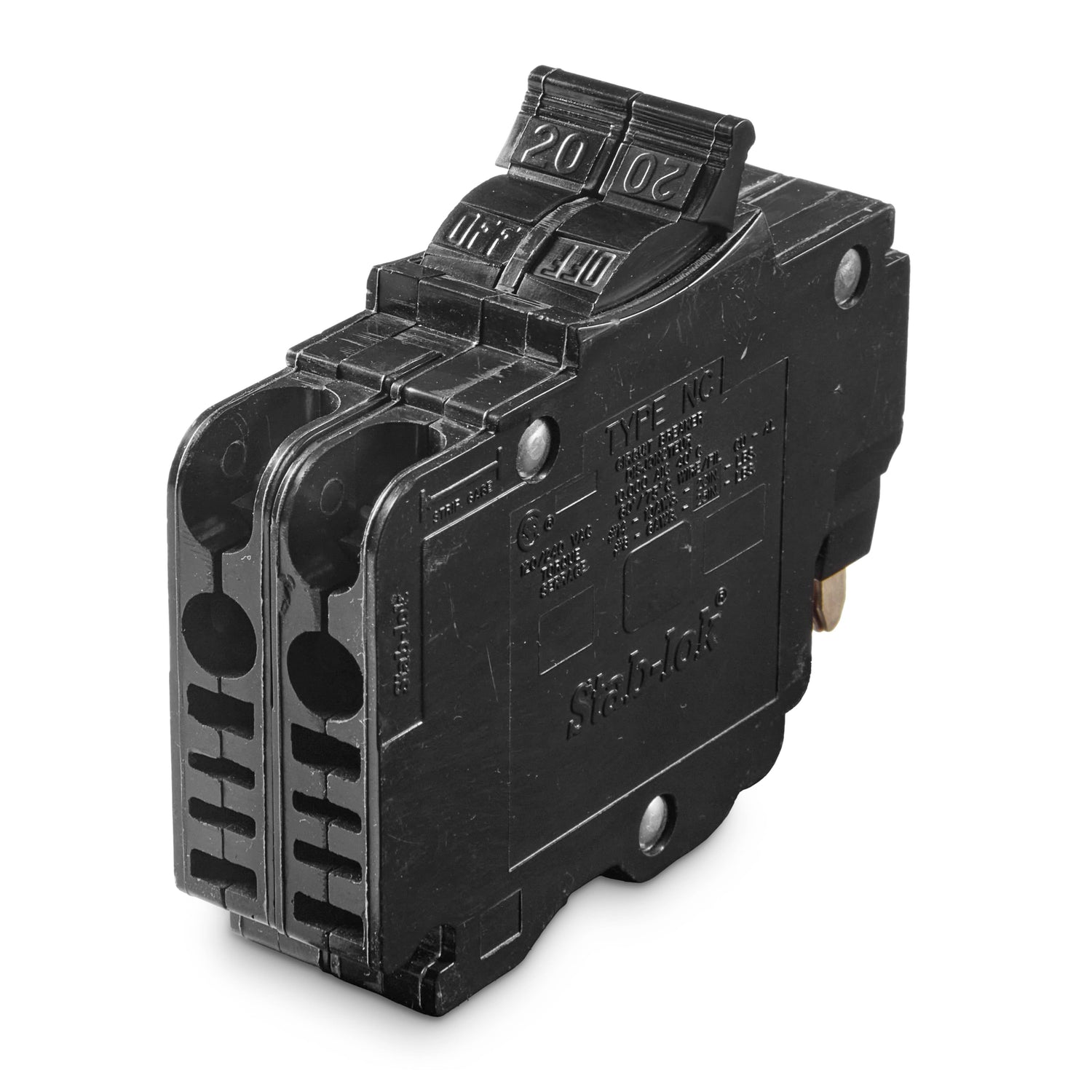

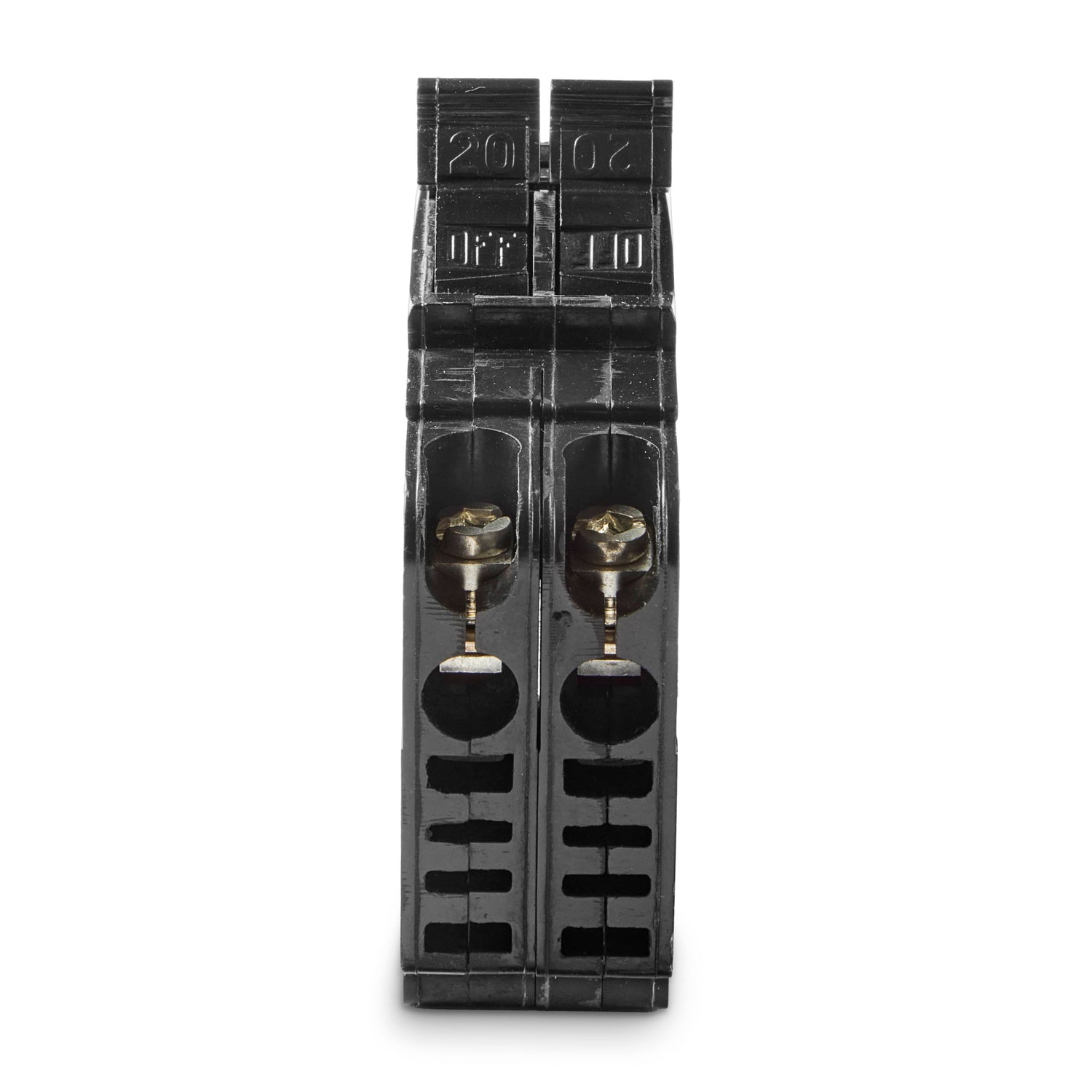

2 Pole 20 Amp Circuit Breaker

$5699
Description

Stab-lok breakers are fully interchangeable with all past breakers and deliver the same proven quality. The unique Stab-lok breaker design of only a 1/2" thick per pole, allows for the reduction of the size and weight of the loadcentre. This breaker will work only in Federal Pioneer Stab-lok branded residential panels. Typical applications for a double pole 20 Amp breaker include the electric heater (240V up to 3.75Kw) in a home and requiring a wire size of 12-2.

  • Provides overload and short circuit protection (240Vac)
  • 10,000 Amperes Interrupting Rating (AIR)
  • Lug Range: #14 - #6
  • Accepts aluminum/copper conductors
  • Thermal magnetic trip protection
  • Typical applications for a double pole 20 Amp breaker include the electric heater (240V up to 3.75Kw) in a home and requiring a wire size of 12-2
  • Automatic trip reset
  • Arc resistant case
  • Trip free operation
  • Quick-make, quick break, self locking line side stab connection
  • 120/240 Volt AC
  • CSA approved to be installed only in Federal Pioneer Stab-lok branded residential panels
    • Specifications
    Assembled product height 3.4"
    Assembled product length 3"
    Assembled product width 1"
    Model NC0220CP
    Package height 3.3 in
    Package length 3.0 in
    Package width 0.9 in
    Product class MERF
