KNAPE & VOGT  |  SKU: 2310378

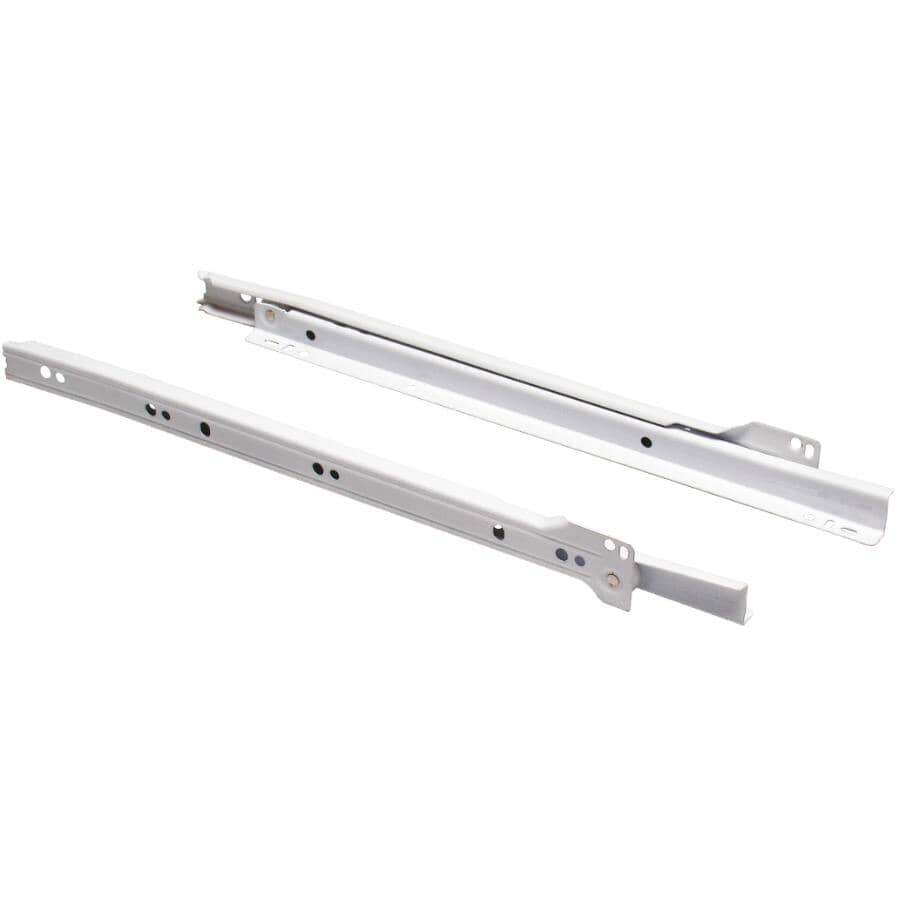

14" European Drawer Slides - White, 2 Pack

$949
Description
  • 14" slide size
  • Medium duty slide designed for use in kitchen cabinets, home office, RTA furniture, and millwork applictions
  • Adaptable to face frame or 32mm mounting
  • Single capture roller limits side play for improved lateral stability
  • Positive double out-stop, positive in-stop
  • Lift out disconnect
  • Four adjustment slots
  • Positive lock-open position
  • Self closing
  • Includes screws and instructions
  • Cabinet member side mounts
  • Additional rear socket
  • Drawer member fastens to either side or bottom of drawer
  • 75 pound class load rating (BHMA and KCMA applications)
  • Clearance: side - 1/2" plus 1/32" minus 0" tolerance, top - 1" required for drawer lift out, bottom - none, slide can rest on cabinet
    • Specifications
    Assembled product length 14"
    Colour family WHITE
    Model 1805RP WH 350
    Package height 14.8 in
    Package length 1.1 in
    Package width 2.0 in
    Product class HCD
