ANKA  |  SKU: 3150000

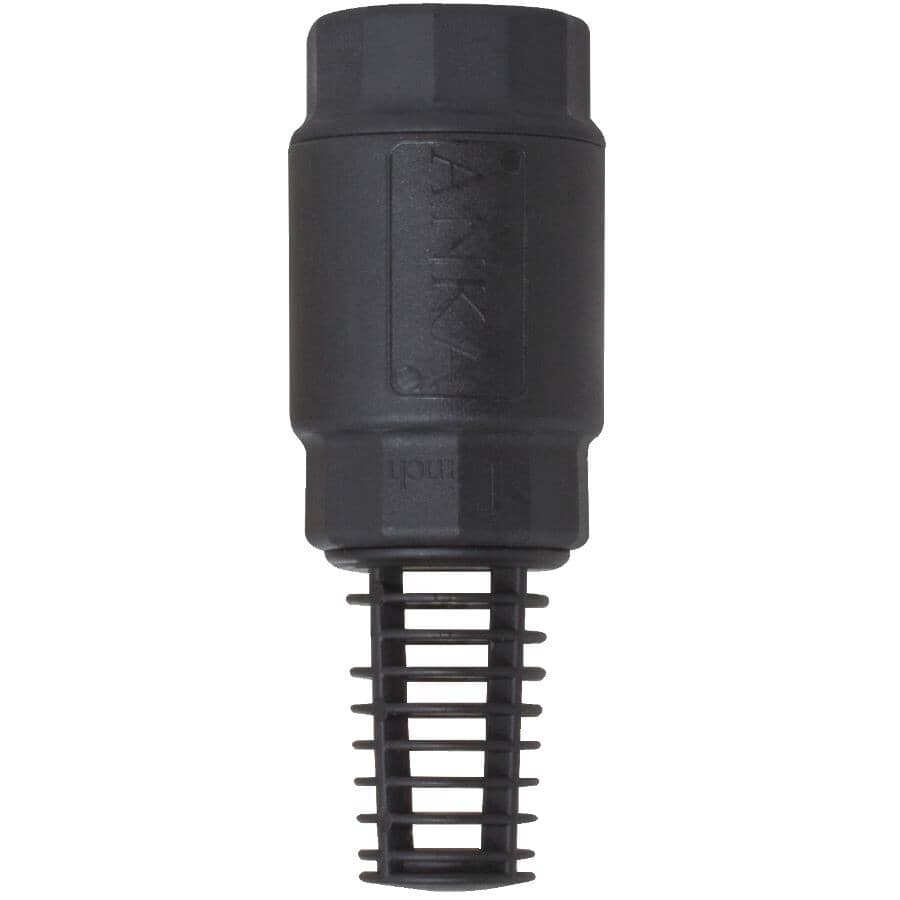

1" Foot Valve - Nylon

$2499
Description

This 1" female foot valve is used at the suction end of the pump line to prevent loss of water. It is spring loaded and can be installed at any angle, it comes complete with a filter screen which can be taken off. This foot valve allows the fluid to flow in one direction only and is ideal for pumping, marine, irrigation, domestic, agricultural and industrial applications. The valve consists of a fiberglass reinforced nylon body, female NPT threads, 316 stainless steel spring, acetyl plunger, and nitrile rubber seal and O-ring. This valve is strong and lightweight and can be taken apart for servicing.

  • Used at the suction end of the pump line to prevent loss of water
  • Spring loaded and can be installed at any angle, and comes complete with a filter screen which can be taken off
  • Combination thread can be used for NPT and BSP
  • Fittings are reusable
  • Will handle 230 psi pressure
  • Non-corrosive
  • 1" diameter
    • Specifications
    Model 88002023
    Package height 6.8 in
    Package length 2.3 in
    Package width 2.2 in
    Product class MPBD
