DORKEN DELTA  |  SKU: 3211851

8' x 65' 7" Delta MS Membrane System

$24999
Description

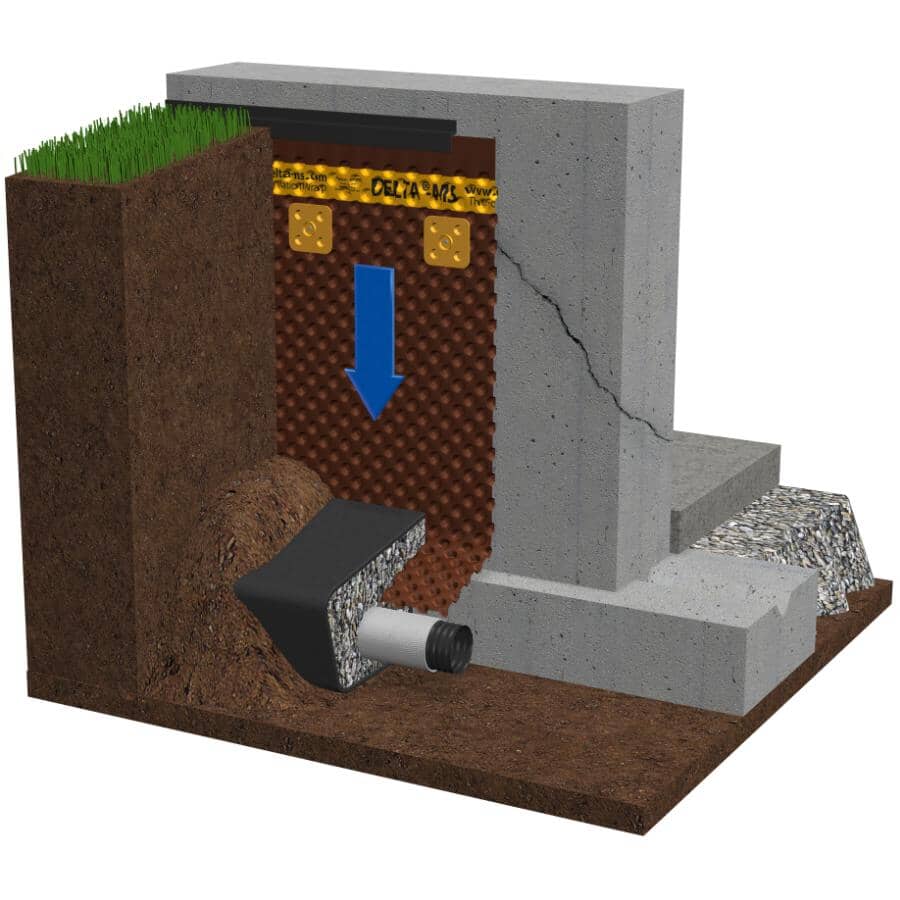

The Delta MS Membrane System, commonly known as "The WRAP" is a premium foundation protection. The membrane is extruded and vacuum formed from high density polyethylene (HDPE) a tough, durable, non-toxic material. It is remarkably impermeable to water and water vapour and impervious to acids and other agents. The dimpled design creates an air-gap between the damp soil and the foundation wall keeping moisture from ever touching the wall on its way to the footing drains. Unlike a coating, the membrane's design allows it to permanently bridge large cracks, tie holes and honeycombed or damaged sections of concrete. The airspace also has the unique effect of allowing moisture from the concrete curing process to escape to the outside of the wall rather than to the interior of the foundation. It can be used on any foundation type, from poured concrete and block walls to pressure treated wood (PWF) and styrofoam formed foundations.

  • Protects foundation from ground water
  • Dimple sheet provides capillary break
  • Air gap allows incidental water to freely drain by gravity
  • Eliminates interior dampness and musty odours
  • Reliably bridges foundation cracks and deflects soil moisture
  • Continues to function even if foundation shifts or cracks
  • No unpleasant chemical odours or harmful VOC’s
  • Resists damage from backfill, like rocks and debris
  • High compressive strength of dimples resists soil pressure
  • Durable plastic and recycled HDPE core is encased by virgin HDPE
  • Easy installation
  • Installs in all types of weather
  • 8' x 65'-7"
    • Specifications
    Assembled product length 787"
    Assembled product width 96"
    Model 22600006
    Package height 96.8 in
    Package length 11.7 in
    Package width 11.2 in
    Product class MPDM
