CASH ACME  |  SKU: 3284038

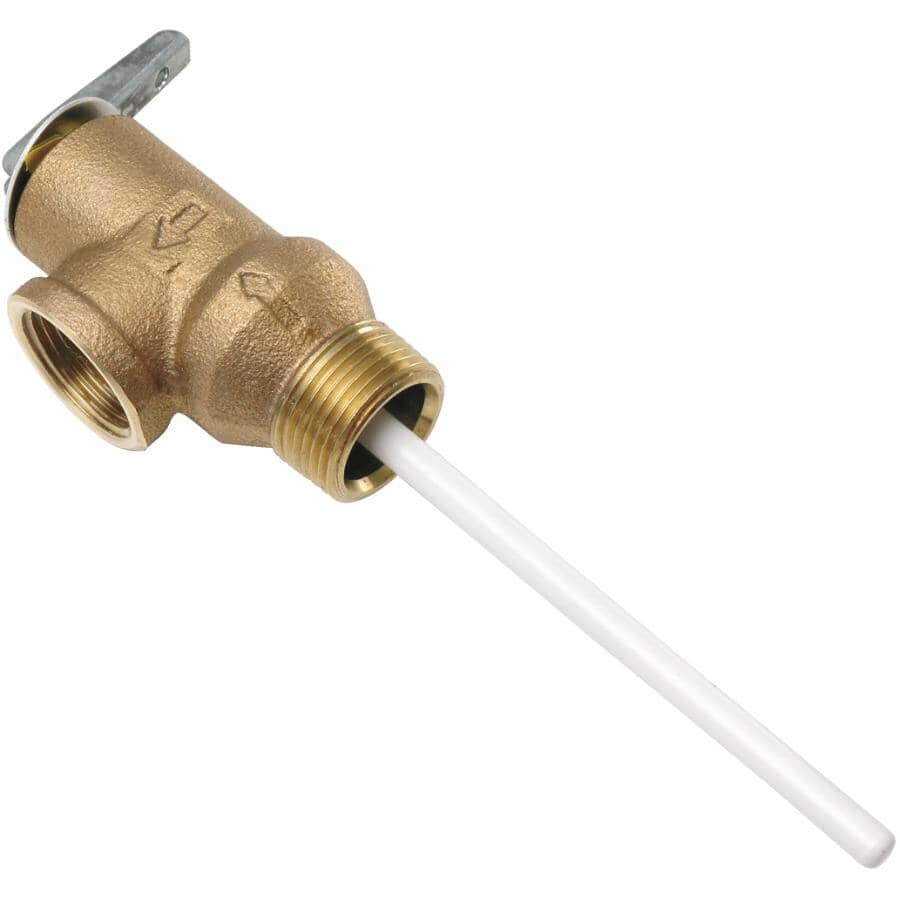

3/4" Temperature & Pressure Relief Valve

$2199
Description

The NCLX incorporates an inert thermal element coating that provides effective isolation from mineral deposits (liming). The NCLX features include a cast bronze body, brass and stainless steel internal parts, silicone seat disc and stainless steel spring. The NCLX comes standard with a test lever. The valve is completely automatic and reseats after either temperature or pressure relief. The NCLX is available in male inlets and female outlets with several options in shank and element lengths.

  • Combined two-in-one temperature and pressure relief
  • Fully automatic protection for domestic hot water supply tanks and heaters
  • Includes test lever
  • For hot water heaters from 15,000 to 100,000 BTU/hour
  • NPT male inlet and female outlet
  • Special protective coating
  • All bronze body
  • Stainless steel spring
  • Thermostat is accurate and proven
  • 3/4"
  • Temperature relief: 210 F (99 C)
  • Pressure relief: 75 to 150 psi (5.2 - 10.3 bars)
    • Specifications
    Model 15836-0150
    Package height 7.2 in
    Package length 1.8 in
    Package width 2.2 in
    Product class MPFP
