GREENLEAF  |  SKU: 3247597

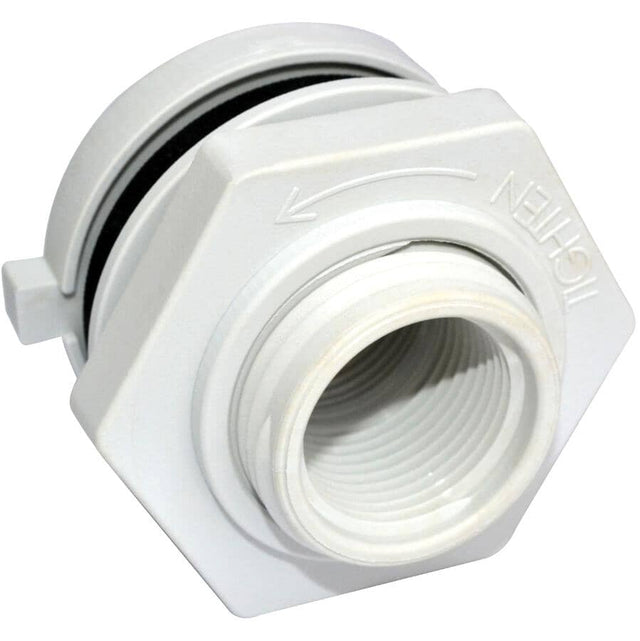

3/4" Nylon Bulkhead & Tank Adapter

$1799
Description

Bulkhead tank fittings are usually installed near the bottom of a container. There is a sealing washer included to keep the tank fitting sealed against the container wall. The inside threads are 3/4" NPT to allow many different types of fittings or valves or cam lock couplers to thread into the center of the tank fitting.

  • External thread and nut are left hand threads
  • Internal thread is female pipe tapered thread
  • For use with tanks having a wall thickness of 1/16" to 1/2"
  • Body and nut are nylon
  • Friction washer in polyethylene
  • Sealing washer is buna
  • FDA approved
    • Specifications
    Fitting type ADAPTER
    Material NYLON
    Model TF34N-B
    Package height 6.8 in
    Package length 1.9 in
    Package width 4.3 in
    Product class MPPB
