FEDERAL PIONEER  |  SKU: 3678568

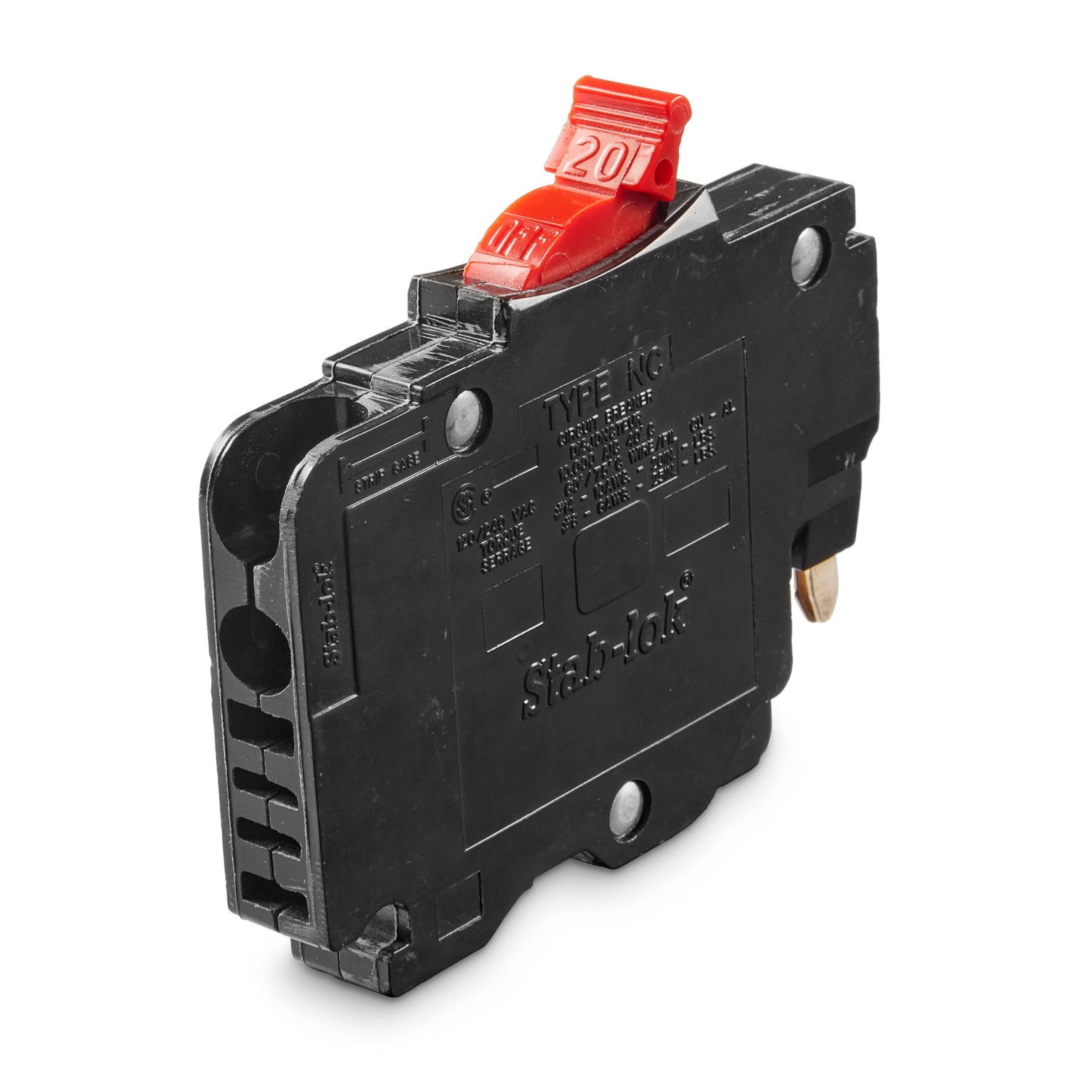

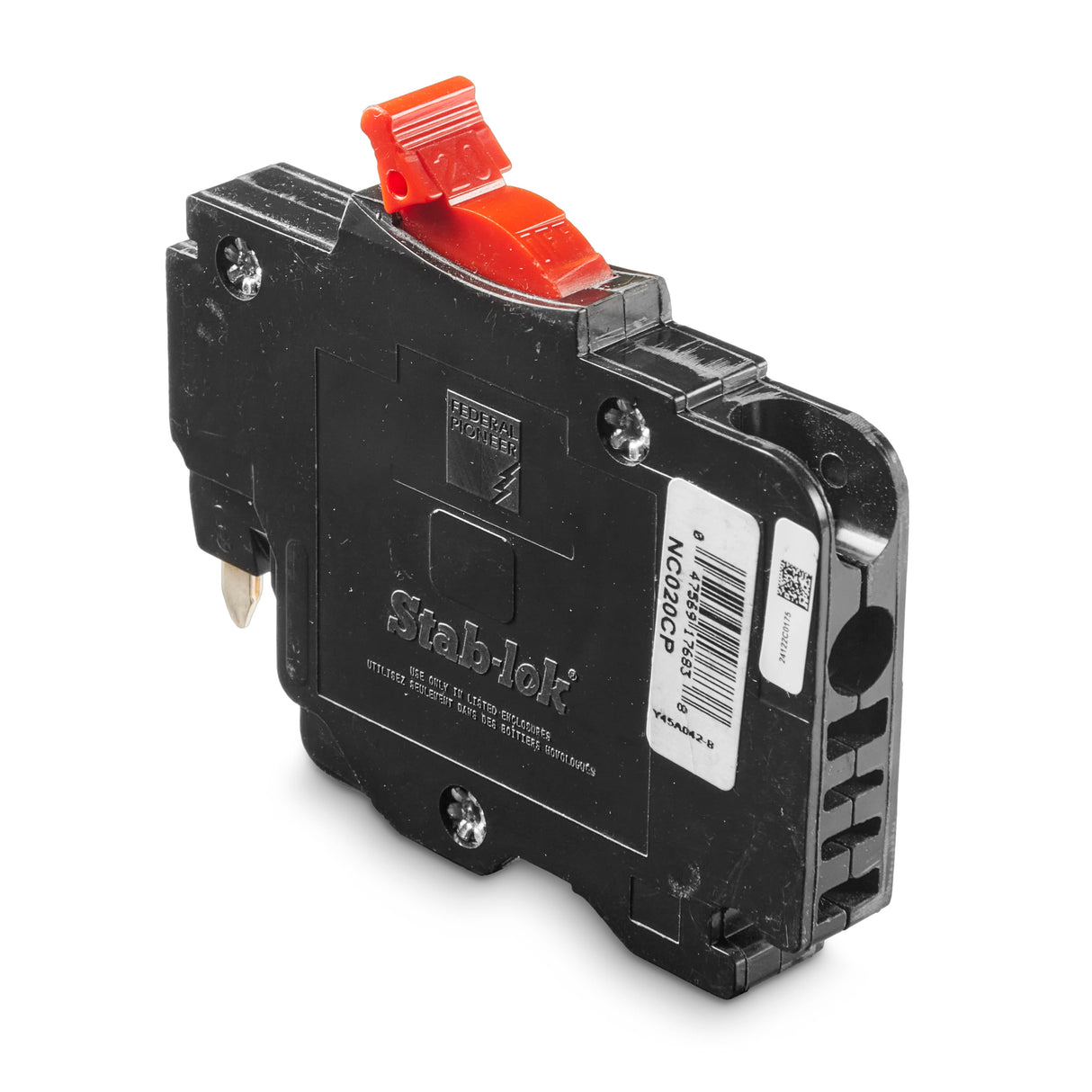

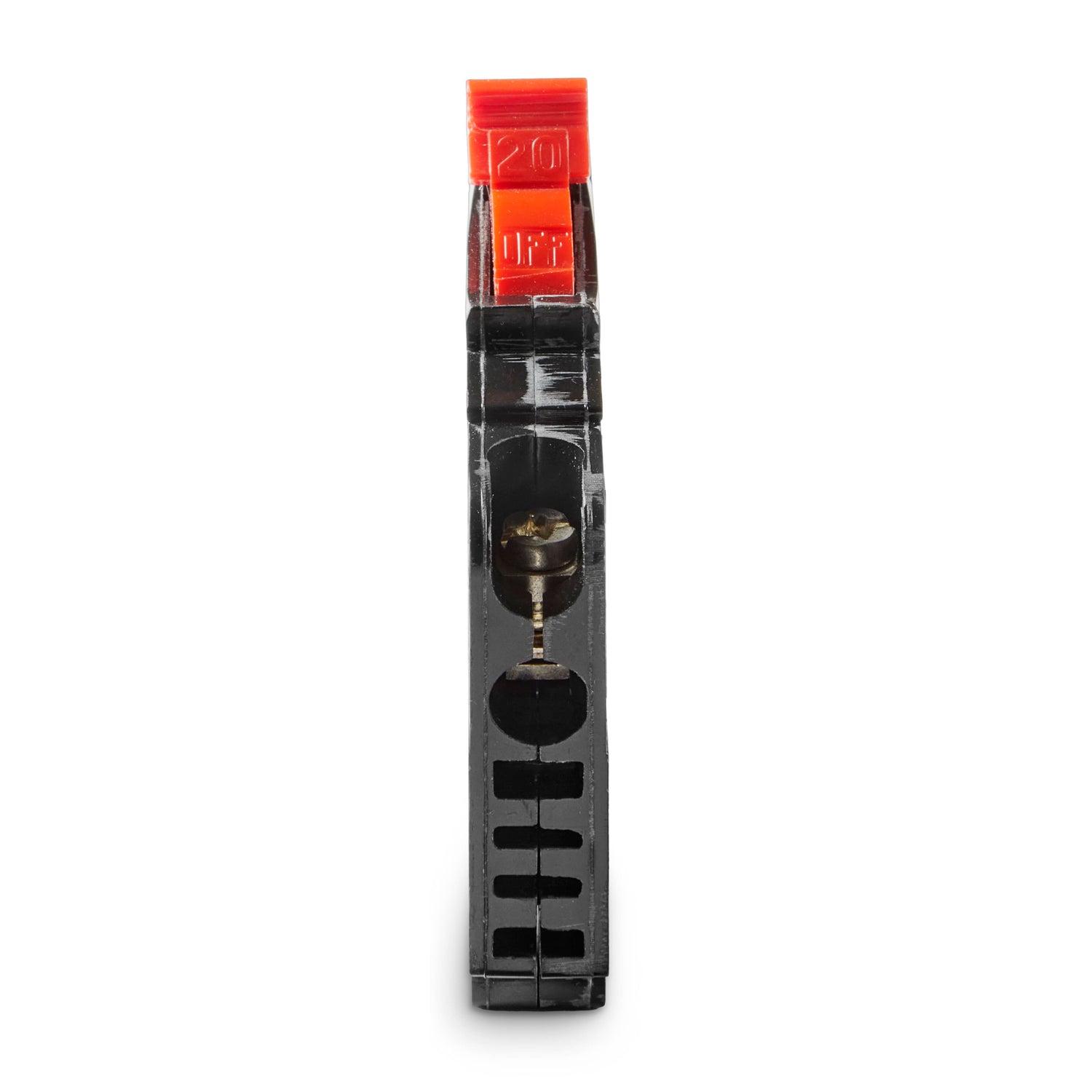

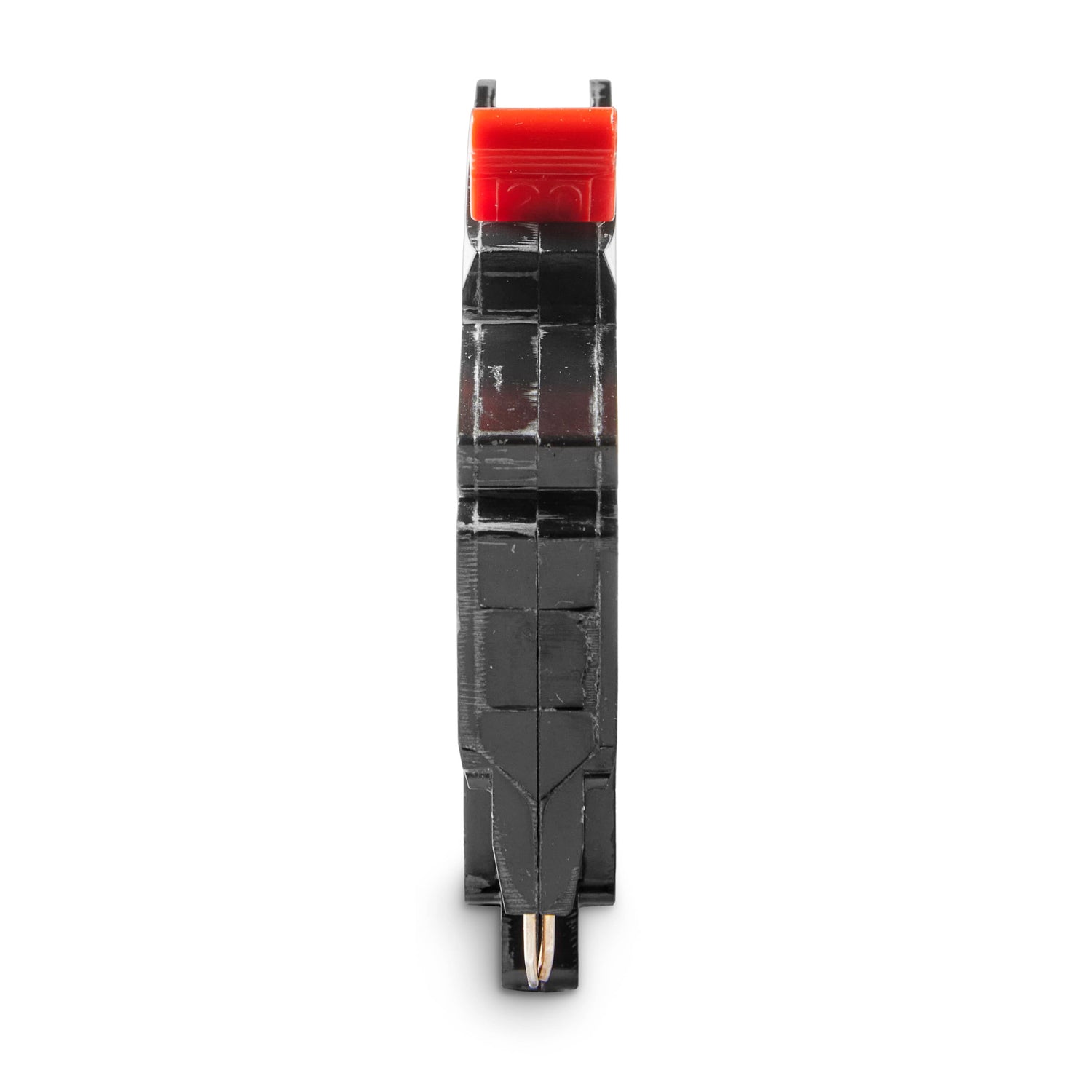

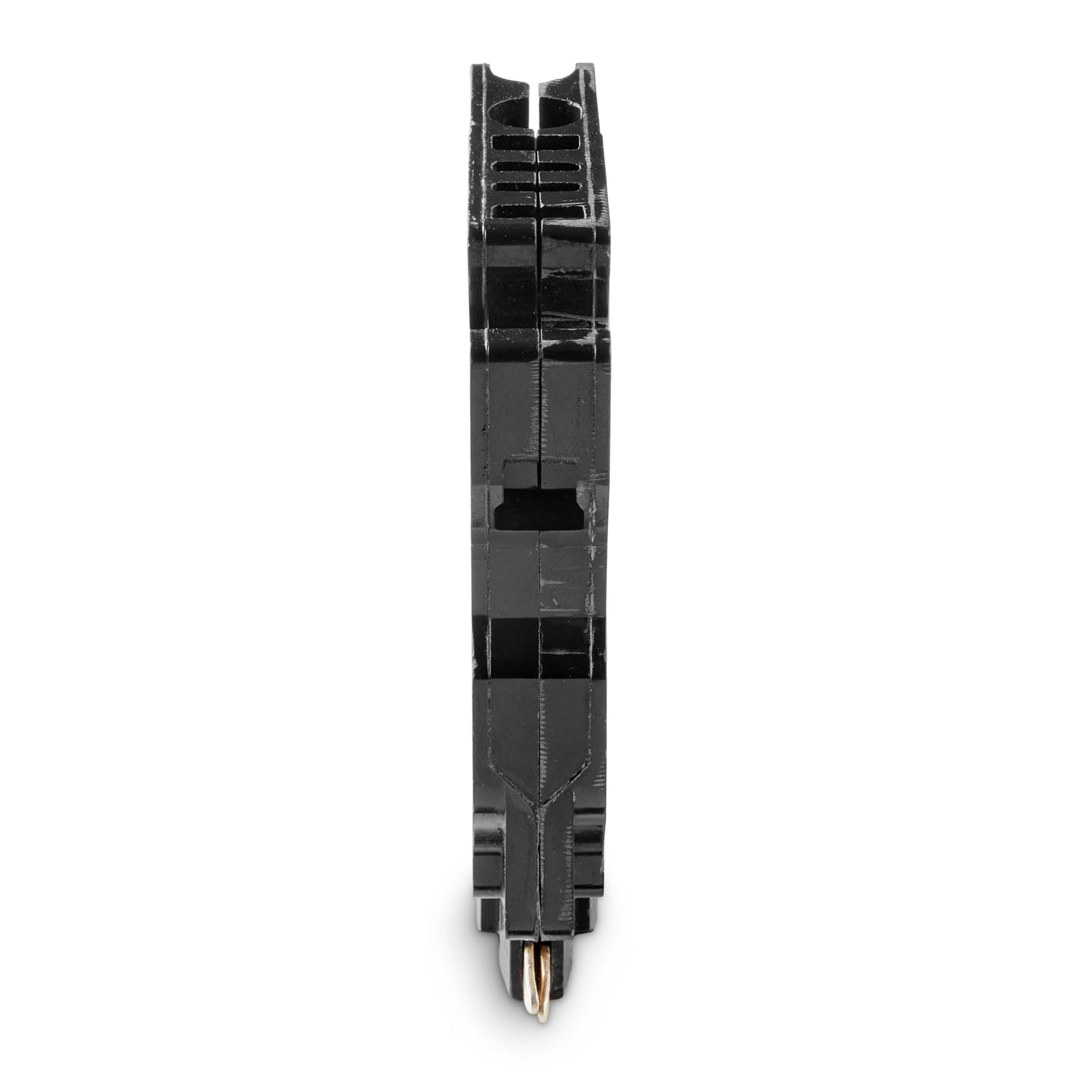

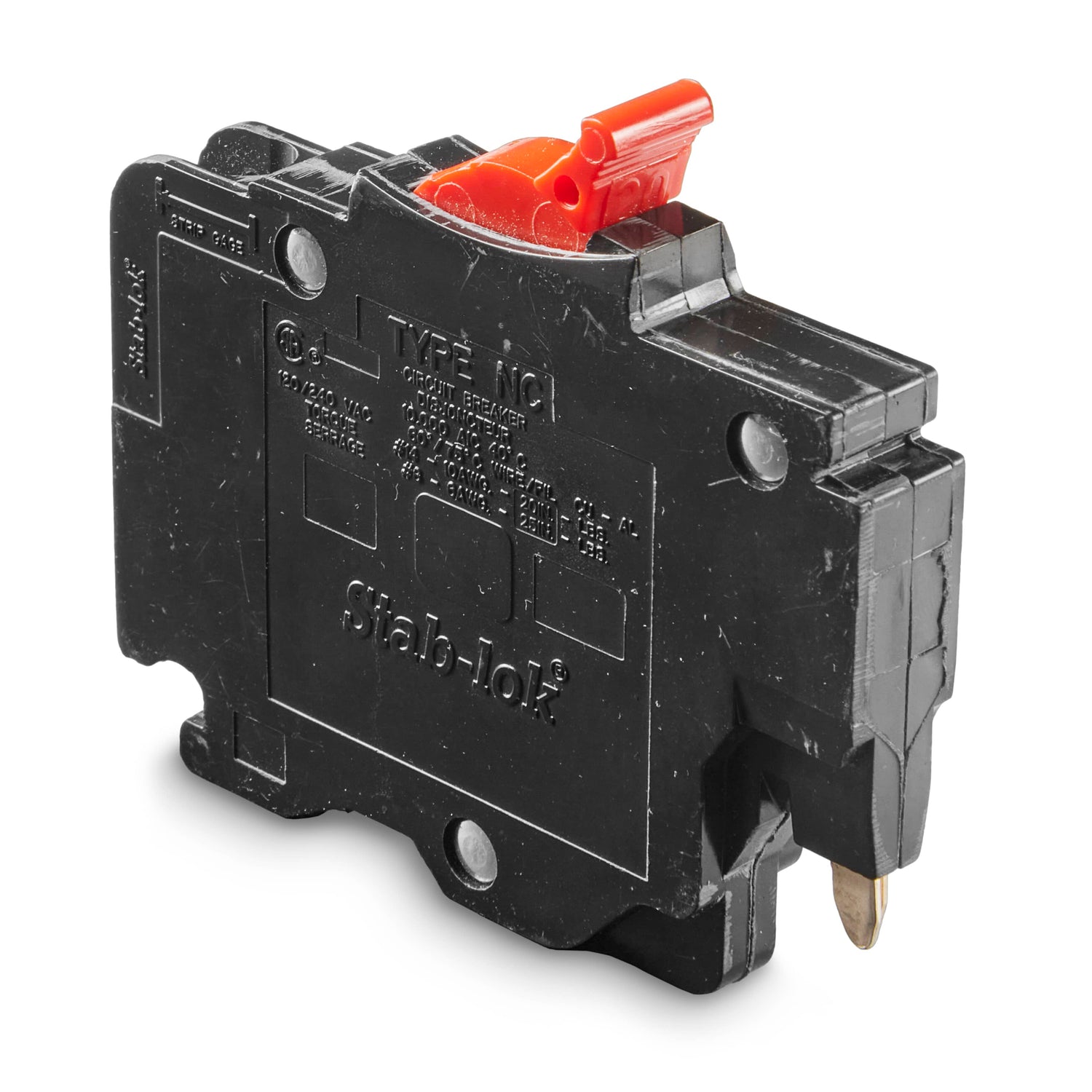

Stab-Lok 20 Amp Single Pole Circuit Breaker

$3299
Description

Stab-lok breakers are fully interchangeable with all past breakers and deliver the same proven quality. The unique Stab-lok breaker design of only a 1/2" thick per pole, allows for the reduction of the size and weight of the loadcentre. This breaker will work only in Federal Pioneer Stab-lok branded residential panels. Typical application for a single pole 20 Amp breaker include kitchen counter outlets circuits with GFCI protection and requiring a wire size of 12-2.

  • Provides overload and short circuit protection (120Vac)
  • 10,000 Amperes Interrupting Rating (AIR)
  • Lug Range: #14 - #6
  • Accepts aluminum/copper conductors
  • Thermal magnetic trip protection
  • Typical application for a single pole 20 Amp breaker include kitchen counter outlets circuits with GFCI protection and requiring a wire size of 12-2
  • Automatic trip reset
  • Arc resistant case
  • Calibrated at 40 degrees C
  • Trip free operation
  • Quick-make, quick break, self locking line side stab connection
  • 120/240V AC
  • Branch and main breaker application
  • CSA approved to be installed only in Federal Pioneer Stab-lok branded residential panels
    • Specifications
    Assembled product height 3.4"
    Assembled product length 3"
    Assembled product width 0.5"
    Model NC020CP
    Package height 3.4 in
    Package length 2.9 in
    Package width 0.6 in
    Product class MERF
