FEDERAL PIONEER  |  SKU: 3678648

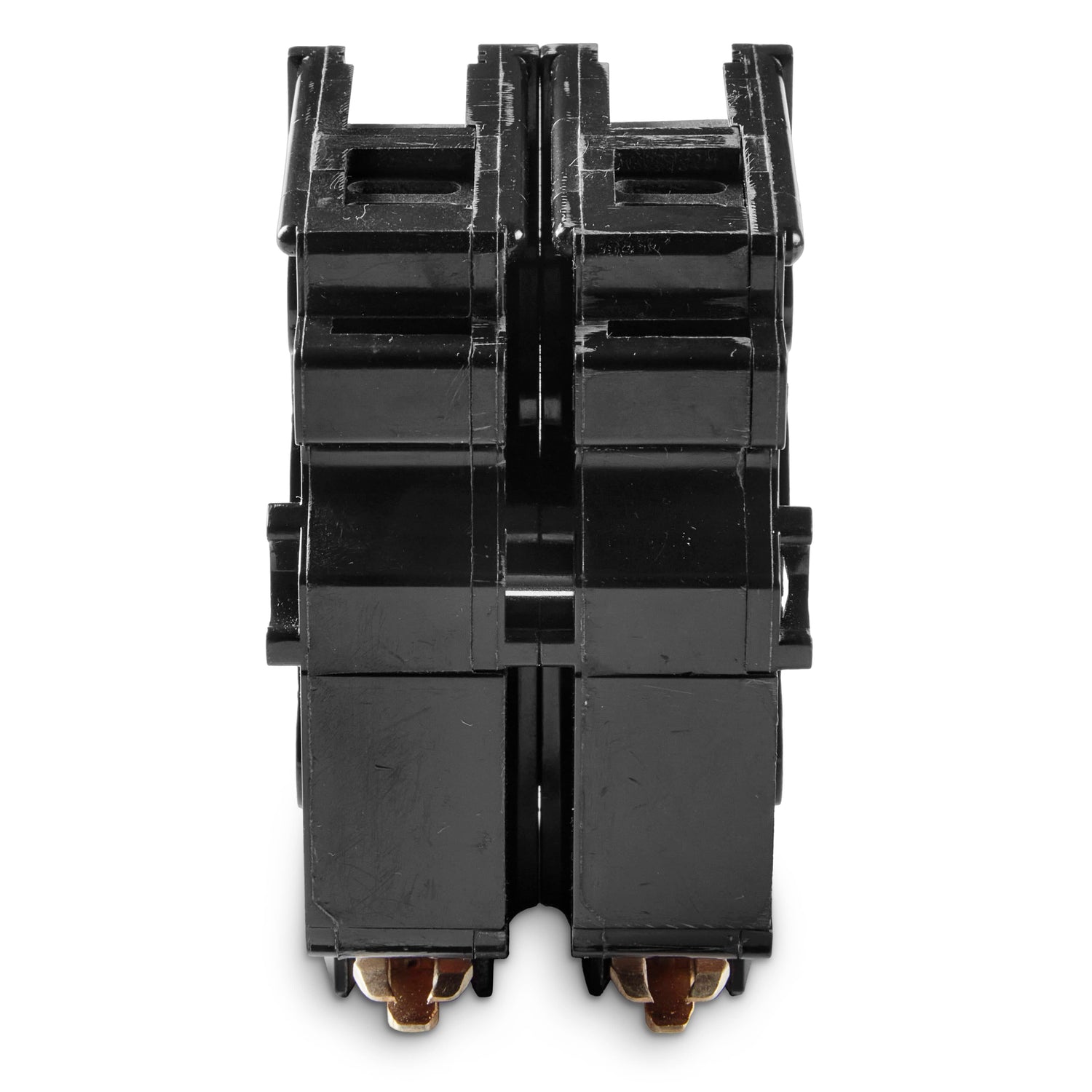

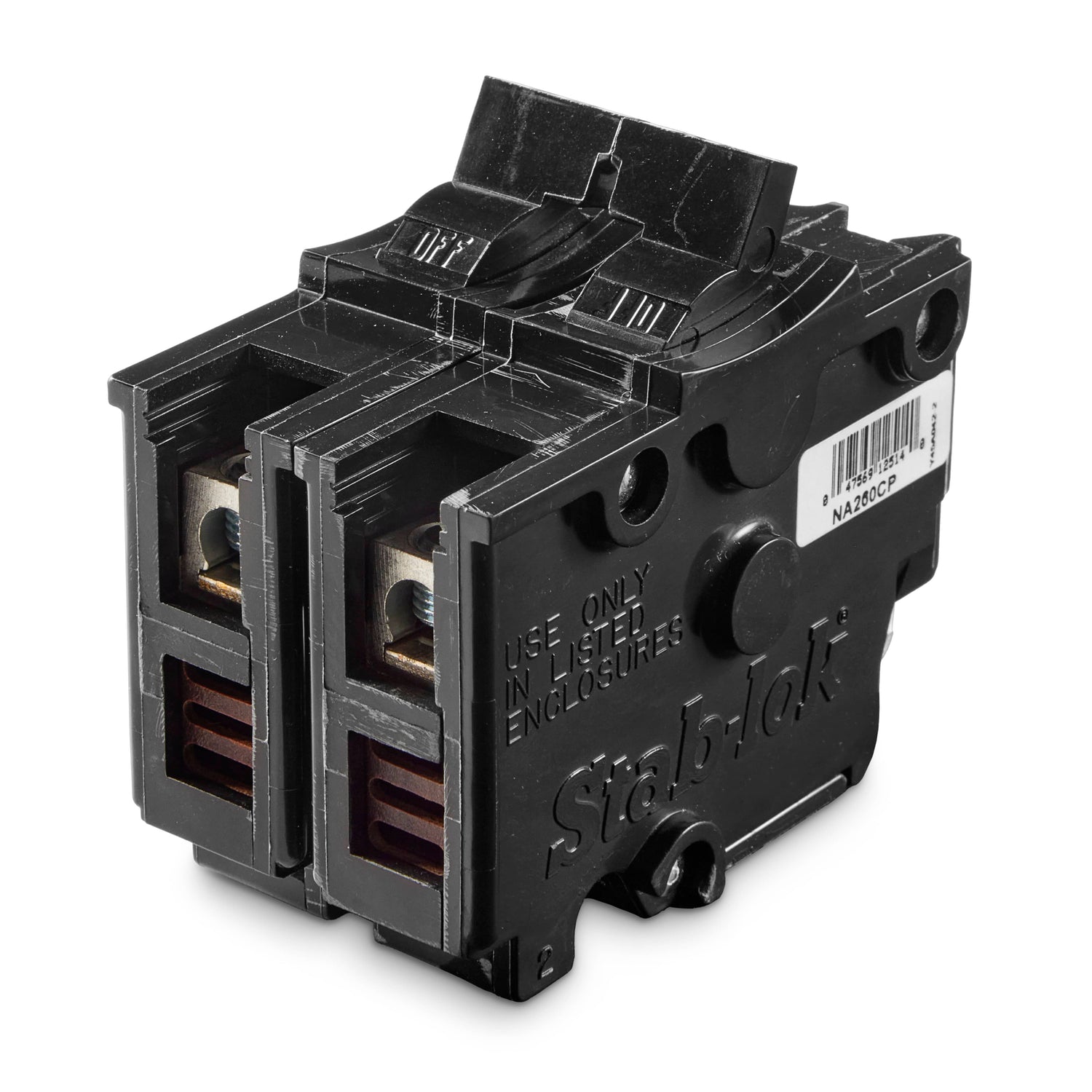

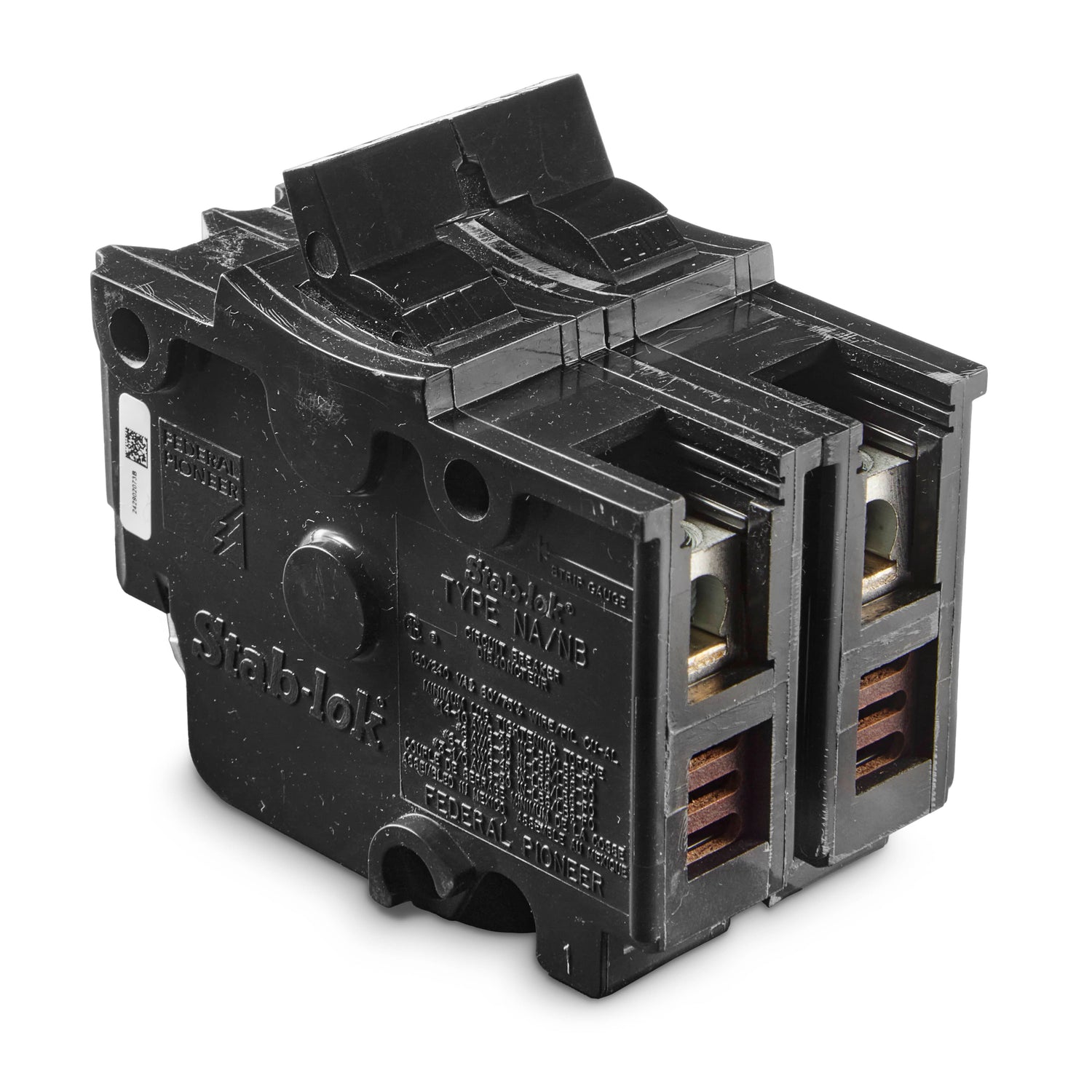

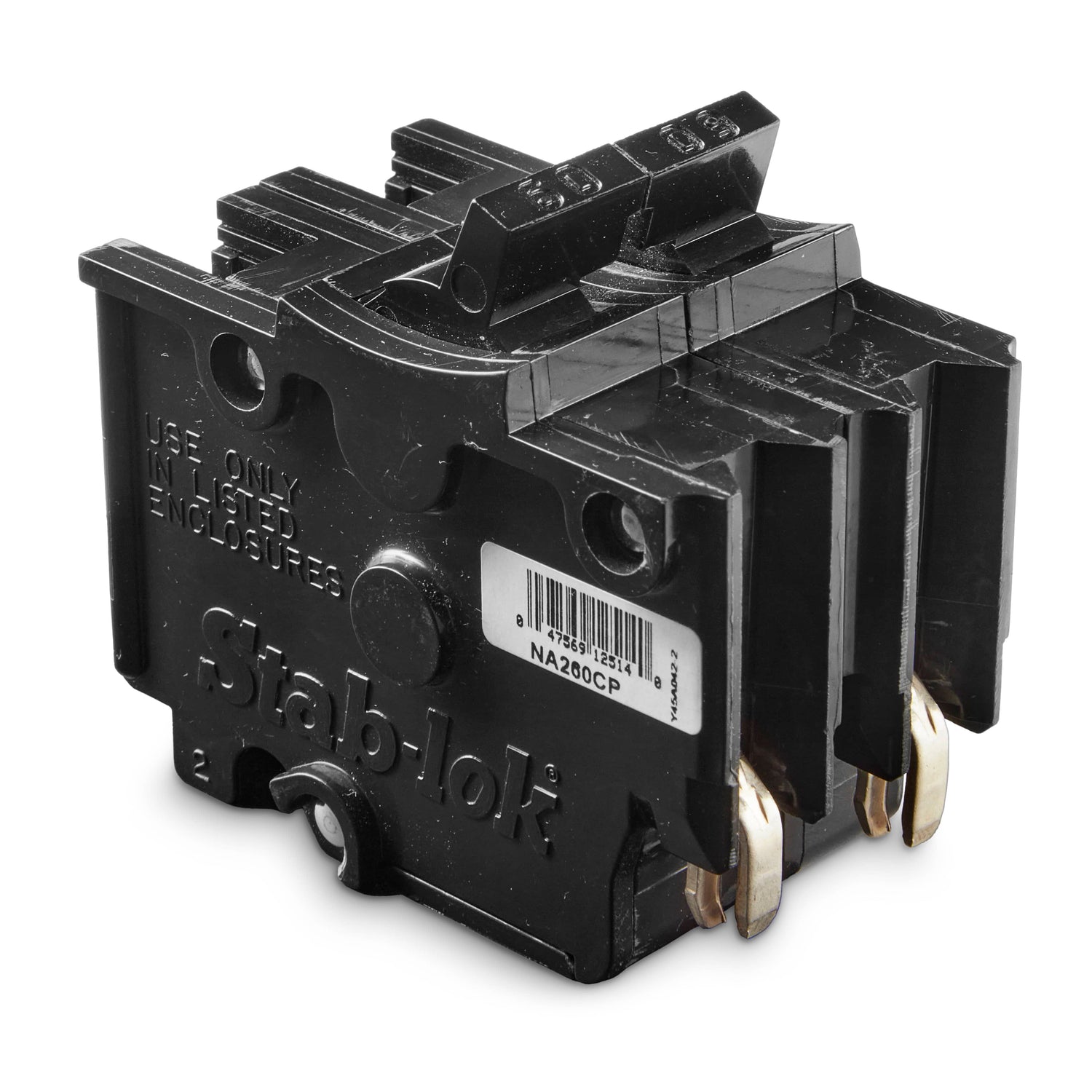

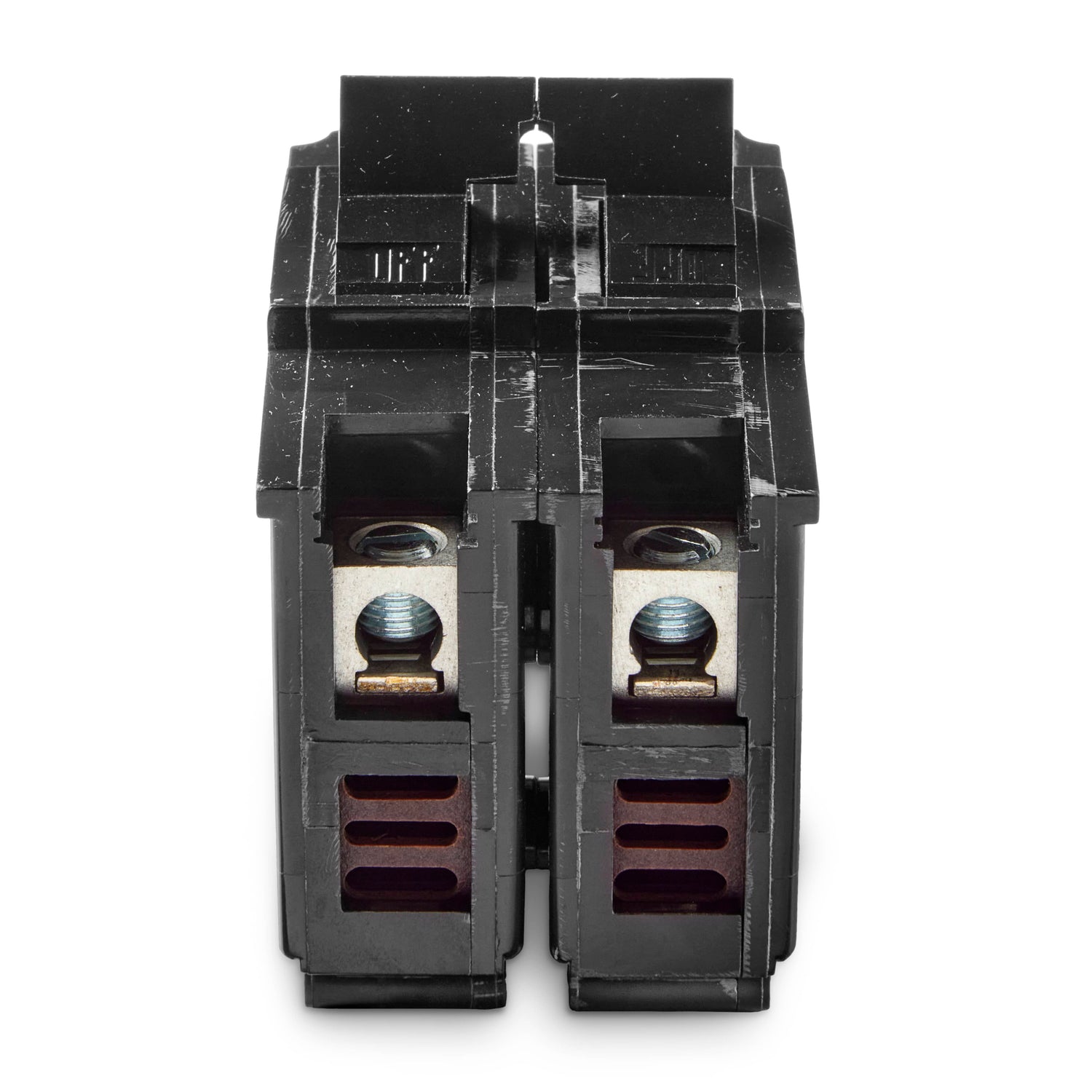

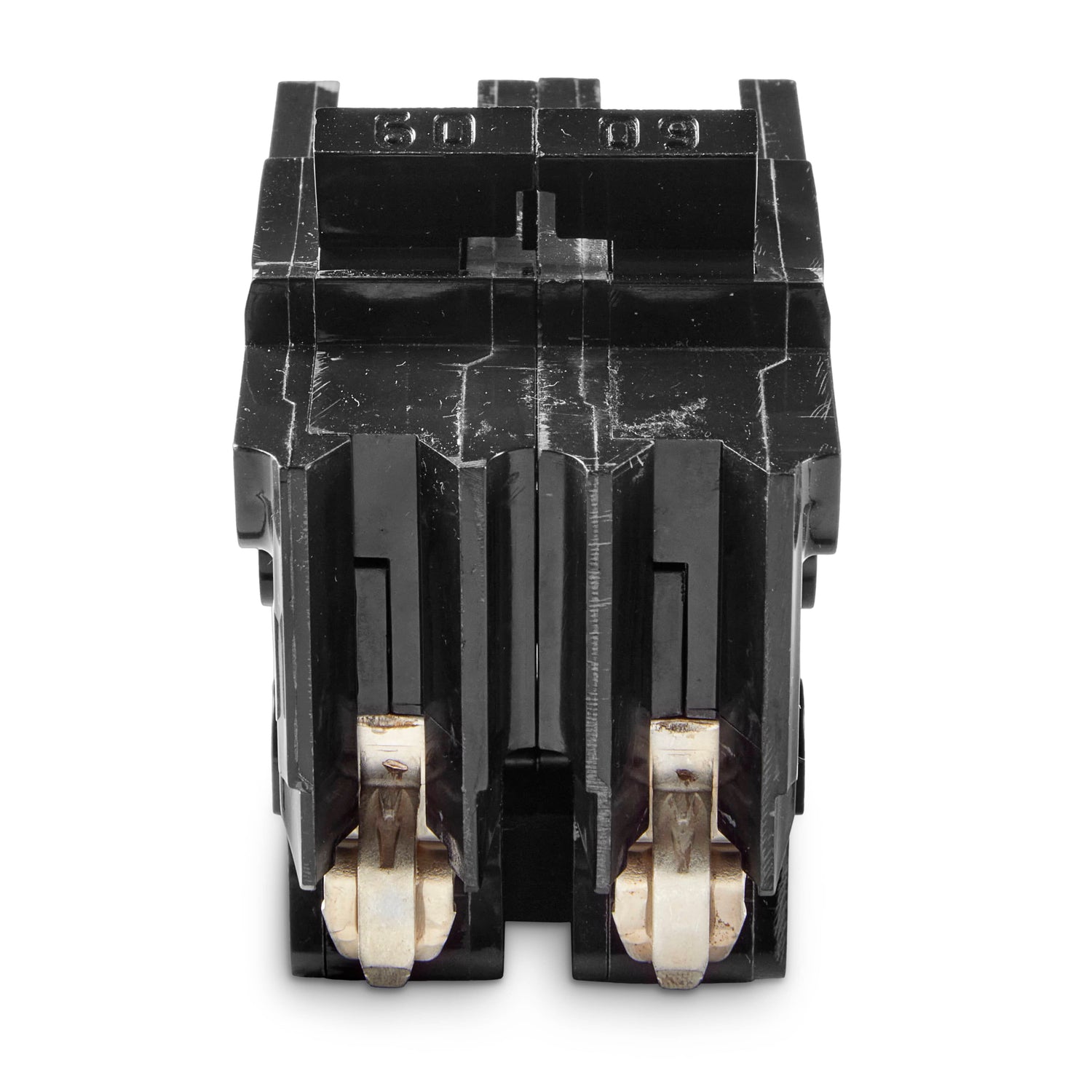

Stab-lok® 60 Amp Double Pole Circuit Breaker

$14999
Description

This Federal Pioneer 2 pole 60 Amp Stab-lok® circuit breaker has automatic trip reset, an arc resistant case and trip free operation. It features a quick-make, quick break, self-locking line side stab connection and thermal magnetic trip operation. Rated 120/240 Volt AC, 10,000 Amperes Interrupting Rating (AIR), it measures 3" x 2" x 3.4"

  • Provides overload and short circuit protection (240Vac)
  • 10,000 Amperes Interrupting Rating (AIR)
  • Lug range: #14 - #2
  • NA 2 Pole breakers take 4 spaces in a Stab-lok panel
  • Accepts aluminum/copper conductors
  • Automatic trip reset
  • Arc resistant case
  • Trip free operation
  • Quick-make, quick break, self locking line side stab connection
  • Thermal magnetic trip operation
  • 120/240 Volt AC
  • CSA approved to be installed only in Federal Pioneer Stab-lok branded residential panels
    • Specifications
    Assembled product height 3.4"
    Assembled product length 3"
    Assembled product width 2"
    Model NA260CP
    Package height 3.0 in
    Package length 3.3 in
    Package width 2.0 in
    Product class MERF
