SQUARE D  |  SKU: 3679521

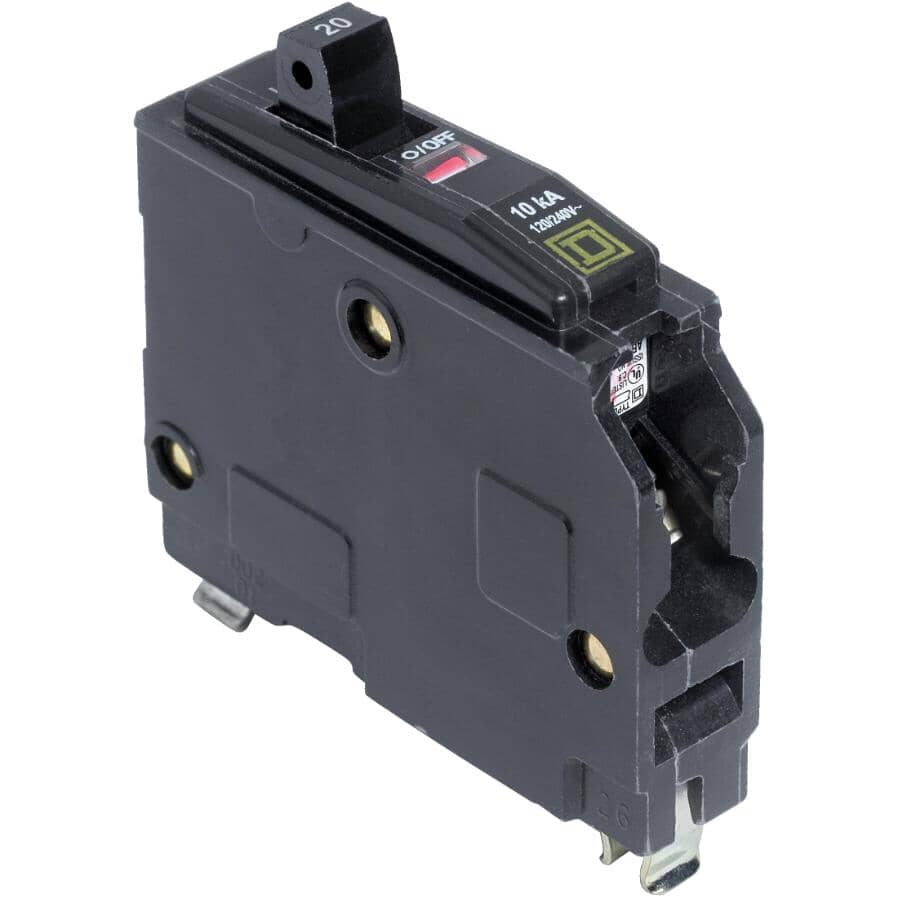

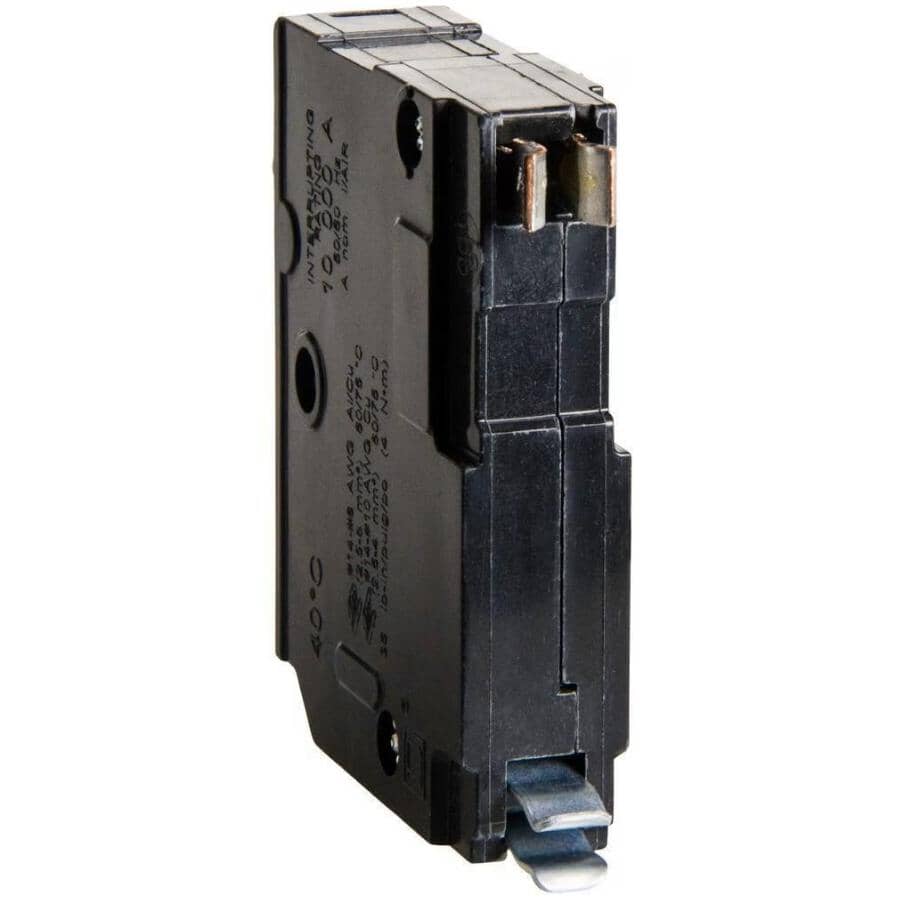

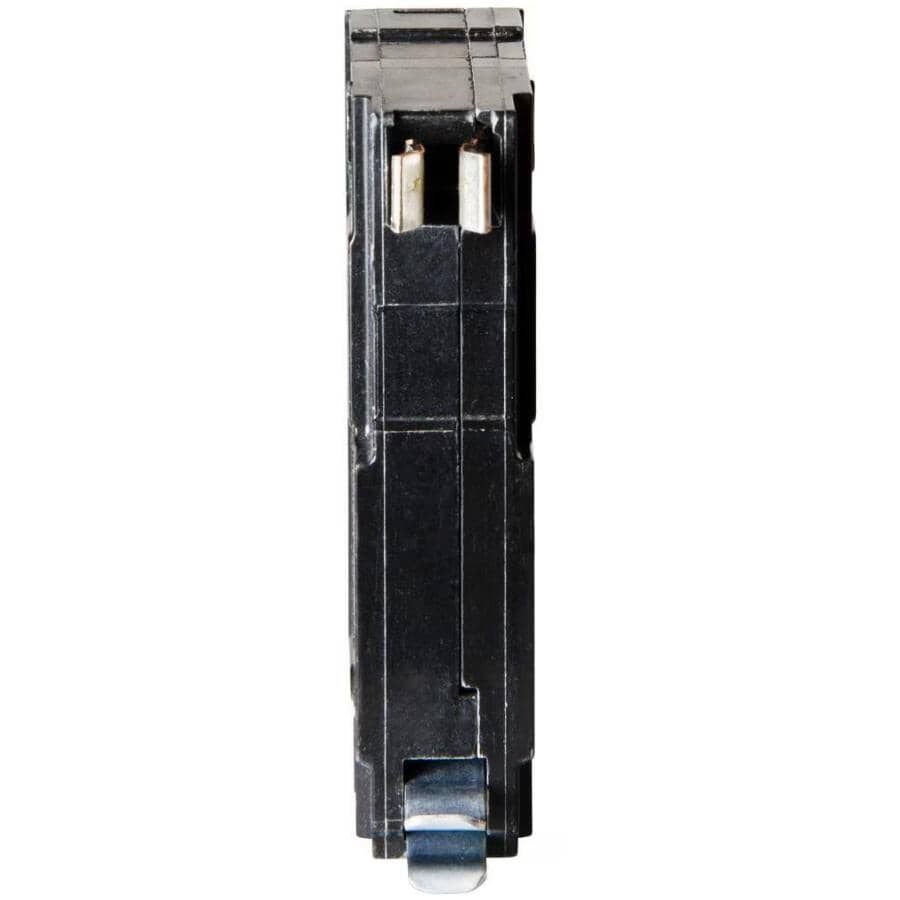

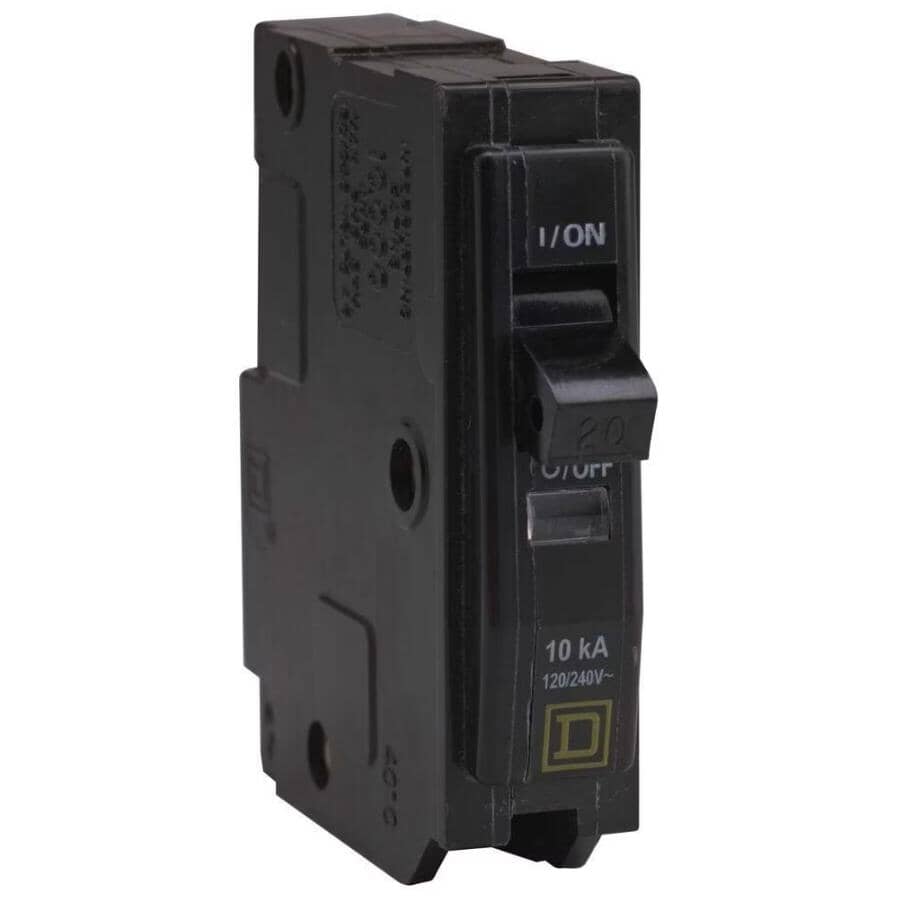

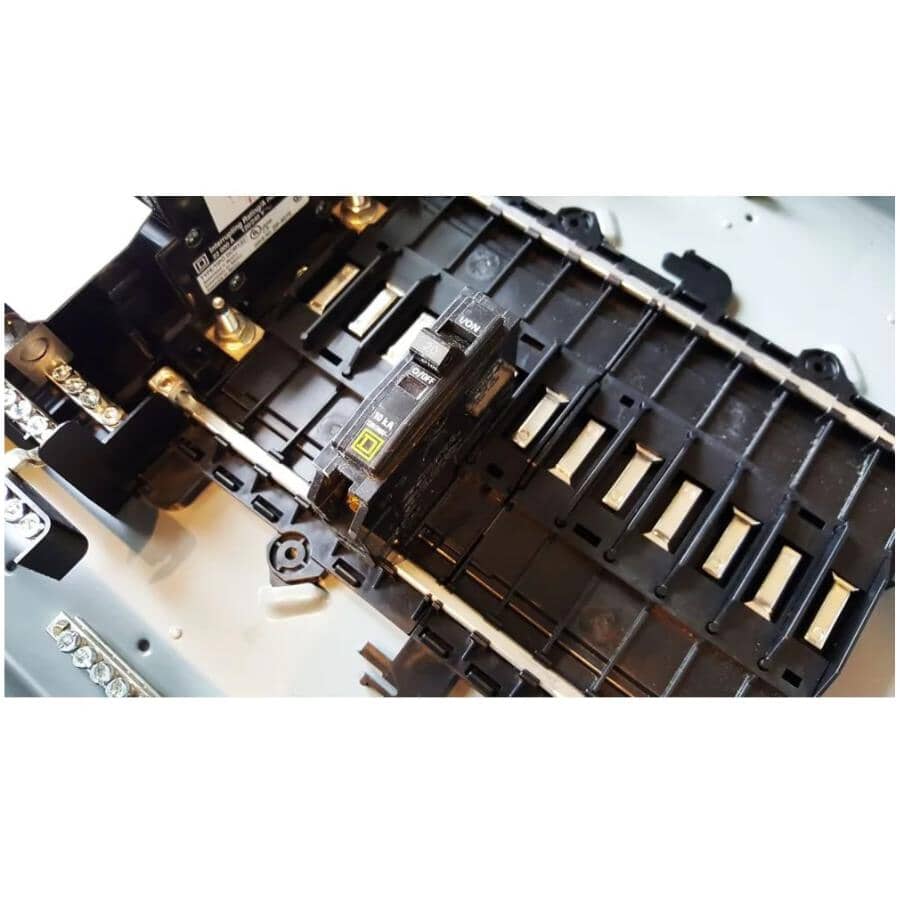

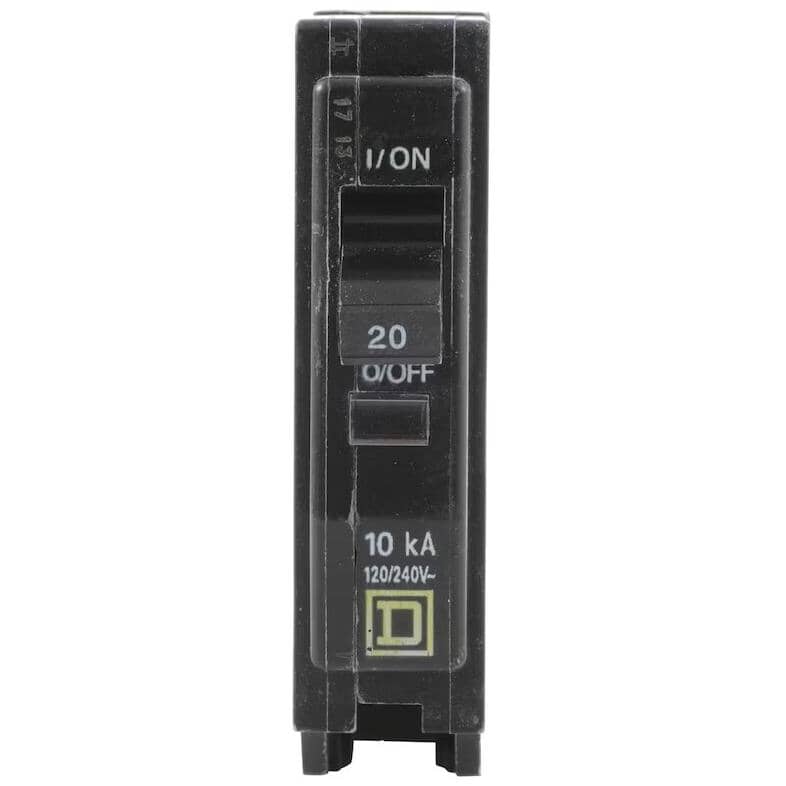

20 Amp Single Pole Circuit Breaker

$2199
Description

QO circuit breakers provide the high level of protection you expect from Square D. When it comes to electrical protection, fast response is critical and QO circuit breakers can trip faster than the blink of an eye. Trip reaction within 1/60th of a second. The exclusive QO Visi-Trip instantly identifies a tripped circuit breaker with a red indicator window. The Visi-Trip reduces the number of call backs, as well as the chance that other circuits will be turned off accidentally. This breaker will work only in Square D branded residential panels. Typical application for a single pole 20 Amp breaker include kitchen counter outlets circuits with GFIC protection and requiring a wire size of 12-2.

  • Provides overload and short circuit protection (120Vac)
  • Accepts aluminum/copper conductors
  • 10,000 Amperes Interrupting Rating (AIR)
  • HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers
  • Typical application for a single pole 20 Amp breaker include kitchen counter outlets circuits with GFIC protection and requiring a wire size of 12-2
  • Single pole 20A breakers are switching duty rated (SWD), suitable for switching 120Vac fluorescent lighting loads

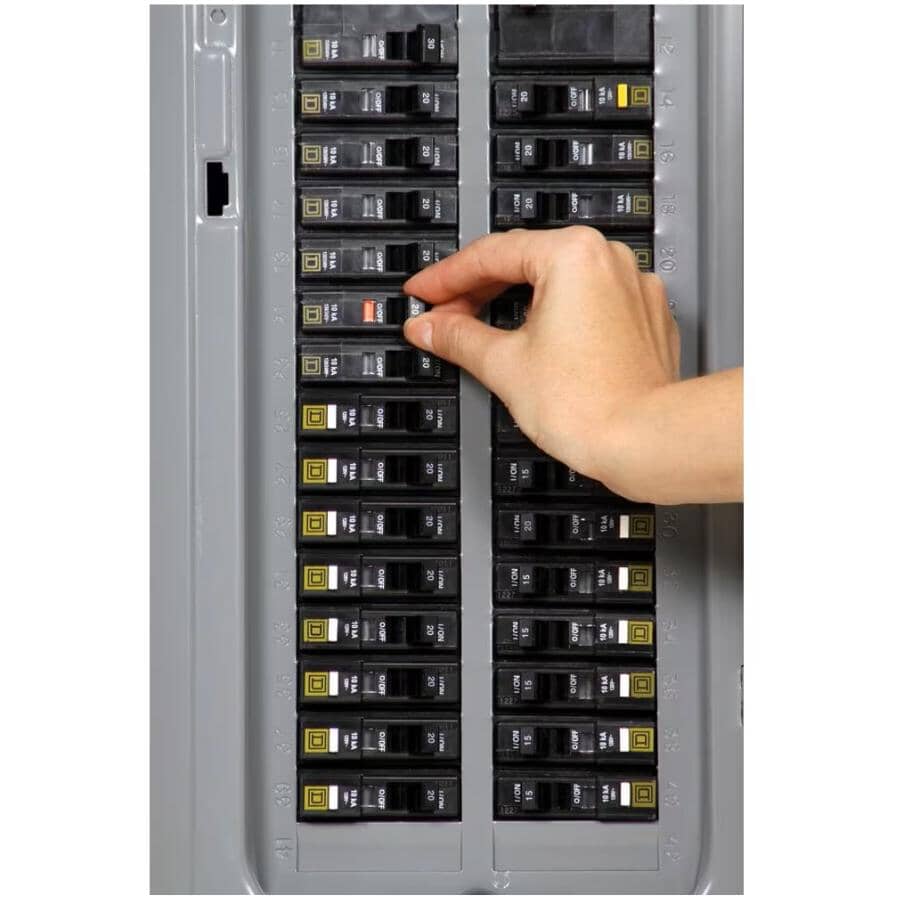

  • With the "Visi-trip" indicator a highly visible red indicator that snaps into view easily identifying the tripped breaker
  • Slot/Robertson screws for wire termination
  • Thermal magnetic tripping mechanism
  • 120/240V AC
    • Specifications
    Assembled product height 3"
    Assembled product length 3.25"
    Assembled product width 0.75"

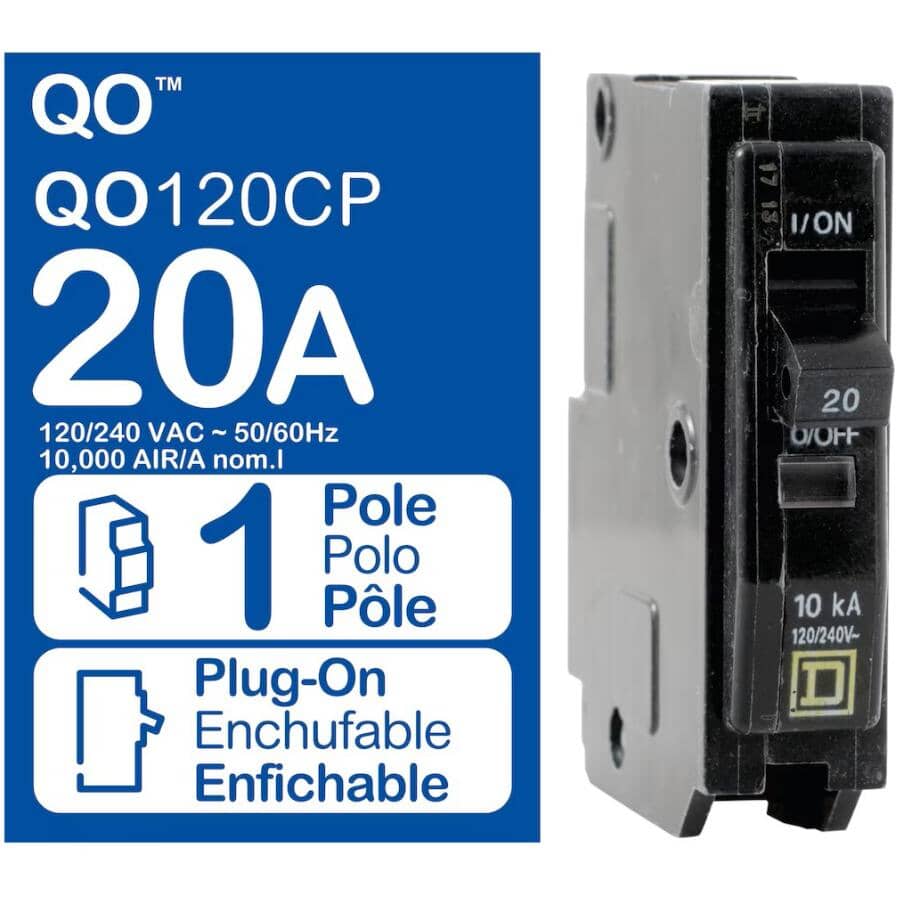

    Model QO120CP
    Package height 3.2 in
    Package length 3.0 in
    Package width 0.7 in
    Product class MERF
