SOUTHWIRE  |  SKU: 3686008

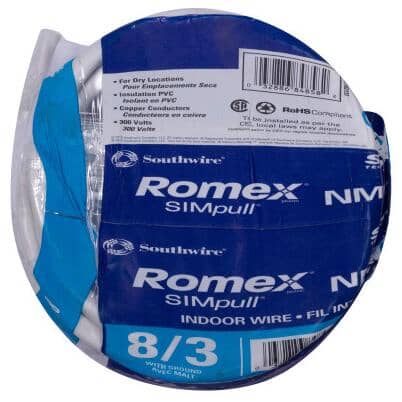

10M 8/3 NMD-90 Copper Wire - White

$17499
Description

Southwire's Romex SIMpull NMD90 cable is used for electrical household wiring. Features Southward's NoLube SIM technology which allows installation without the need for external lubricants. Southwire Romex SIMpull NMD90 is manufactured using annealed (soft) copper conductors. Compressed stranding for the stranded conductors. 90°C rated PVC insulation with a nylon jacket for the individual conductors; a PVC jacket surrounds the overall construction. Use it for grounded receptacles in electrical outlet wiring, combo switch receptacles, wall switches, light switches and dimmer switches, lighting fixtures, ceiling fans, freezers, refrigerators, dishwashers, washing machines, exhaust fans and other household appliances. Romex SIMpull features Southwires NoLube SIM technology which has revolutionized the way wire is pulled into conduit without any pulling lubricant, saving contractors both time and money. Romex SIMpull NMD90 electrical cable pulls 50% easier, is tear resistant, reduces burn-thru and strips easier. Freeze Flex gives you more pliability, easier stripping and added crack-resistance in cold weather.

  • 8 AWG Romex SIMpull NMD90 with 3 copper conductors and one ground wire
  • Minimum recommended installation temperature is minus 25°C for two-conductor cables and minus 10°C for three-conductor cables
  • Should be properly stored above 0°C for 24 hours prior to installation
  • The maximum allowable conductor temperature is 90°C
  • Maximum voltage rating for all intended applications is 300V
  • Consult the most recent Canadian Electrical Code (CEC) or a licensed electrician for further information related to applications
    • Specifications
    Model 47182133
    Package height 4.0 in
    Package length 11.0 in
    Package width 11.0 in
    Product class MERW
