SOUTHWIRE  |  SKU: 3686011

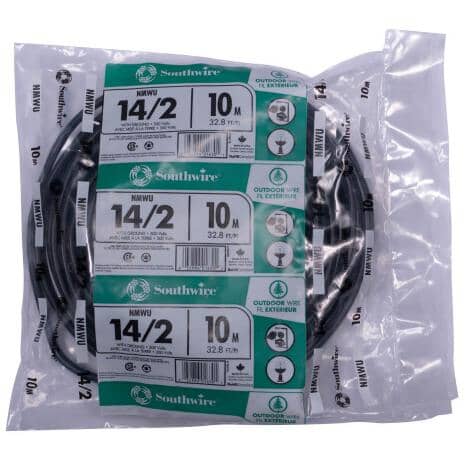

10M 14/2 NMWU Copper Wire - Black

$5499
Description

Southwire's NMWU cables may be used in underground installations, including direct burial, at conductor temperatures not exceeding 60°C. Southwire NMWU also may be used for work in both concealed and exposed areas to the weather in dry and wet locations. Southwire's NMWU cables are available as two- or three-conductor cables, with bare grounding conductor. Constructed with annealed (soft) copper conductors - compressed stranding for the stranded conductors; a thermoplastic polyvinyl chloride (PVC) insulation and a nylon jacket for the phase conductors; and a sunlight-, moisture-, and fungus-resistant PVC jacket surrounding the overall construction.

  • 14 AWG NMWU with 2 copper conductors and one ground wire
  • Minimum installation temperature is -40°C for two- conductor cables sizes 14 AWG through 6 AWG, and
  • -25°C for other sizes
  • Material should be properly stored above 0°C for 24 hours prior to installation
  • Maximum voltage rating for all intended applications is 300V
    • Specifications
    Assembled product height 2"
    Assembled product length 10"
    Assembled product width 10"
    Model 47184710
    Package height 2.6 in
    Package length 11.3 in
    Package width 10.2 in
    Product class MERW
